Description

MF2S thru MF10S Miniautre Glass Passivated Single-Phase Surface Mount Bridge Rectifier Reverse Voltage 200~1000V Ountput Current 1A .

📥 Download Datasheet

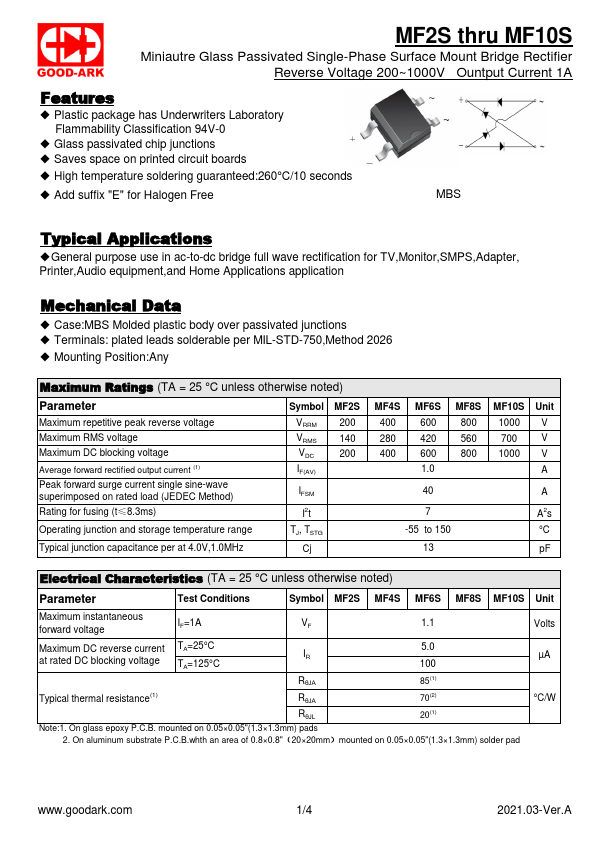

MF10S Datasheet Preview — Preview of MF10S PDF

Datasheet Specifications

Part number: MF10S
Manufacturer: Goodark
File Size: 426.28 KB
Datasheet: MF10S-Goodark.pdf
Description: Single-Phase Surface Mount Bridge Rectifier

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Glass passivated chip junctions
* Saves space on printed circuit boards
* High temperature soldering guaranteed:260°C/10 seconds

Applications

* General purpose use in ac-to-dc bridge full wave rectification for TV,Monitor,SMPS,Adapter, Printer,Audio equipment,and Home Applications application Mechanical Data
* Case:MBS Molded plastic body over passivated junctions
* Terminals: plated leads solderable per MIL-STD-750,Method 202
