GM51104

1.8V & 2.5V & 3.3V LVCMOS High-Performance Clock Buffer

GM51104 Features

* High-Performance 1:4 LVCMOS Clock Buffer

* Very Low Pin-to-Pin Skew < 50ps

* Very Low Additive Jitter < 50fs

* Very Low Propagation Delay < 3ns

* Synchronous Output Enable

* Supply Voltage: 3.3V or 2.5V or 1.8V

* fmax = 250MHz for 3.3V & 2.5V

* fmax = 200MHz for 1.8

GM51104 General Description

The GM51104 is a modular, high-performance, low-skew, general-purpose clock buffer. High performing characteristics such as low additive jitter, low skew, and wide operation temperature range. The GM51104 supports a synchronous output enable control (1G) which switches the outputs into a low state w.

GM51104 Datasheet (1.61 MB)

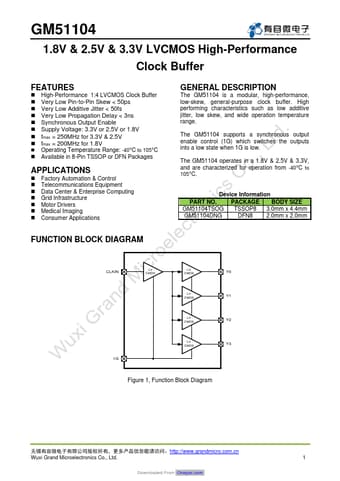

GM51104 Datasheet Preview — Preview of GM51104 PDF

Datasheet Details

Part number:

GM51104

Manufacturer:

Grand Microelectronics

File Size:

1.61 MB

Description:

1.8v & 2.5v & 3.3v lvcmos high-performance clock buffer.
