2SK3294 - MOSFET

Features

  • Gate voltage rating 30 V Low on-state resistance Low input capacitance Ciss = 1500 pF TYP. (VDS = 10 V, VGS = 0 V) Avalanche capability rated Built-in gate protection diode Surface mount device available +0.2 5.28-0.2 +0.1 1.27-0.1 0.1max +0.1 0.81-0.1 2.54 5.08 +0.1 -0.1 +0.2 2.54-0.2 +0.2 15.25-0.2 RDS(on) = 160 m MAX. (VGS = 10 V, ID = 10 A) +0.2 8.7-0.2 +0.2 2.54-0.2 +0.2 0.4-0.2 Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain curre.

📥 Download Datasheet

Datasheet preview – 2SK3294

Datasheet Details

Part number 2SK3294
Manufacturer Guangdong Kexin Industrial
File Size 75.79 KB
Description MOSFET
Datasheet download datasheet 2SK3294 Datasheet
Additional preview pages of the 2SK3294 datasheet.

📁 Similar Datasheet

  • 2SK3294 - SWITCHING N-CHANNEL POWER MOSFET (NEC)
  • 2SK3290 - N-Channel MOSFET (Hitachi Semiconductor)
  • 2SK3291 - N-Channel MOSFET (Sanyo Semicon Device)
  • 2SK3292 - N-Channel MOSFET (Sanyo Semicon Device)
  • 2SK3293 - N-Channel MOSFET (Sanyo Semicon Device)
  • 2SK3295 - SWITCHING N-CHANNEL POWER MOSFET (NEC)
  • 2SK3296 - MOSFET (NEC)
  • 2SK3297 - MOSFET (NEC)
  • 2SK3298 - N-Channel MOSFET (NEC)
  • 2SK3299 - N-Channel MOSFET (NEC)
Other Datasheets by Guangdong Kexin Industrial

Full PDF Text Transcription

Click to expand full text

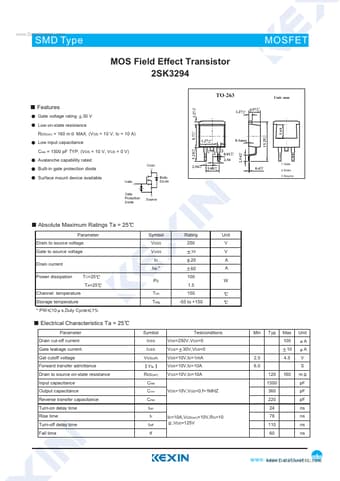

www.DataSheet4U.com SMD Type MOS Field Effect Transistor 2SK3294 TO-263 +0.1 1.27-0.1 MOSFET Unit: mm +0.1 1.27-0.1 +0.2 4.57-0.2 Features Gate voltage rating 30 V Low on-state resistance Low input capacitance Ciss = 1500 pF TYP. (VDS = 10 V, VGS = 0 V) Avalanche capability rated Built-in gate protection diode Surface mount device available +0.2 5.28-0.2 +0.1 1.27-0.1 0.1max +0.1 0.81-0.1 2.54 5.08 +0.1 -0.1 +0.2 2.54-0.2 +0.2 15.25-0.2 RDS(on) = 160 m MAX. (VGS = 10 V, ID = 10 A) +0.2 8.7-0.2 +0.2 2.54-0.2 +0.2 0.4-0.
