TP3.5x9 Push-Type DC Tubular Solenoid

ISO 9001 / AS9100 Certified Company Woodstock, IL 60098 Ph. (815)334-3600 Fax (815)337-0377 Or visit us at our website www.guardian-electric.com Model TP3.5 x 9 Push Push-Type DC Tubular Solenoid Solenoid shown energized and fully seated. Supplied with mounting bracket, hex nut and lockwasher (not shown). Spring kits are available (consult factory). Total Weight: Plunger Weight: .61 oz. .1 oz. Model No. TP3.5x9-I-12 TP3.5x9-C-12 TP3.5x9-I-24 TP3.5x9-C-24 Part No. A420-063496-02 A420-063496.

TP3.5x9-Guardian.pdf

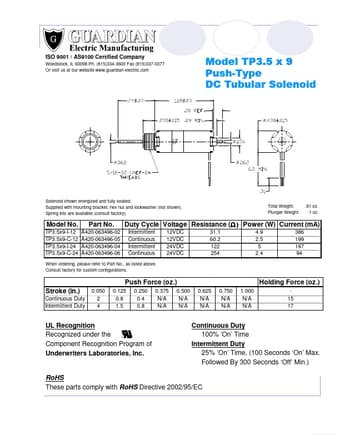

TP3.5x9 Datasheet Preview — Preview of TP3.5x9 PDF

Datasheet Details

Part number:

TP3.5x9

Manufacturer:

Guardian

File Size:

74.59 KB

Description:

Push-type dc tubular solenoid.
