SB23, SB22 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

SB23 Description

SB22 THRU SB210 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE: 20 to 100V CURRENT: 2.0A .

SB23 Applications

* Low profile package Built-in strain relief Low power loss, high efficiency High current capability, low forward voltage drop High surge capability For use in low voltage high frequency inverters, free wheeling, and polarity protection applications Guard ring for over voltage protection High temperat

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB23, SB22. Please refer to the document for exact specifications by model.

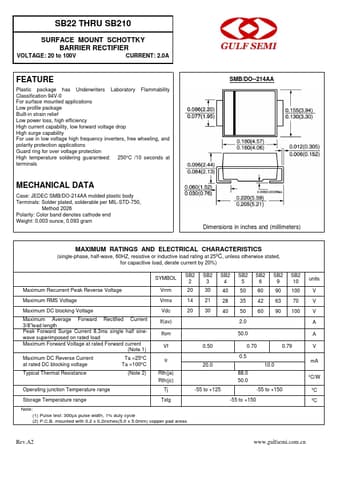

datasheet Preview Page 2

Datasheet Details

Part number
SB23, SB22
Manufacturer
Gulf Semiconductor
File Size
120.57 KB
Datasheet
SB22-GulfSemiconductor.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SB23, SB22.
Please refer to the document for exact specifications by model.
