GC3D20065A Silicon Carbide Schottky Diode

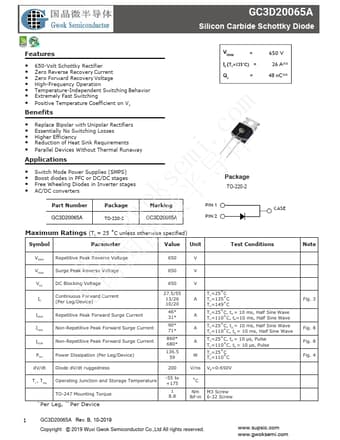

📥 Download Datasheet  Datasheet Preview Page 1

Description

GC3D20065A Silicon Carbide Schottky Diode .

📥 Download Datasheet

Preview of GC3D20065A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
GC3D20065A
Manufacturer
Gwok
File Size
1.54 MB
Datasheet
GC3D20065A-Gwok.pdf
Description
Silicon Carbide Schottky Diode

Features

* VRRM = 650 V
* 650-Volt Schottky Rectifier IF (TC=135˚C) = 26 A
* Zero Reverse Recovery Current
* Zero Forward Recovery Voltage Qc = 48 nC
* High-Frequency Operation
* Temperature-Independent Switching Behavior
* Extrem

Applications

* Switch Mode Power Supplies (SMPS) e
* Boost diodes in PFC or DC/DC stages s
* Free Wheeling Diodes in Inverter stages
* AC/DC converters ok Part Number w GC3D20065A Package TO-220-2 Marking GC3D20065A Package TO-220-2 PIN 1 PIN 2 CASE g Maximum Ratings (TC
