3401 Datasheet, Mosfet, H&M Semiconductor

3401 Features

  • Mosfet
  • VDS = -30V,ID = -4.2A RDS(ON) < 120mΩ @ VGS=-2.5V RDS(ON) < 72mΩ @ VGS=-4.5V RDS(ON) < 55mΩ @ VGS=-10V
  • High Power and current handing capability
  • Lead free

PDF File Details

Part number:

3401

Manufacturer:

H&M Semiconductor

File Size:

547.79kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode power mosfet. The HM3401 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2

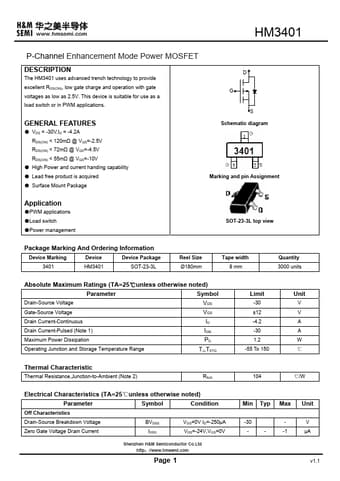

Datasheet Preview: 3401 📥 Download PDF (547.79kb)
Page 2 of 3401 Page 3 of 3401

3401 Application

  • Applications GENERAL FEATURES
  • VDS = -30V,ID = -4.2A RDS(ON) < 120mΩ @ VGS=-2.5V RDS(ON) < 72mΩ @ VGS=-4.5V RDS(ON) < 55mΩ @ VGS=-10V

TAGS

3401
P-Channel
Enhancement
Mode
Power
MOSFET
H&M Semiconductor
