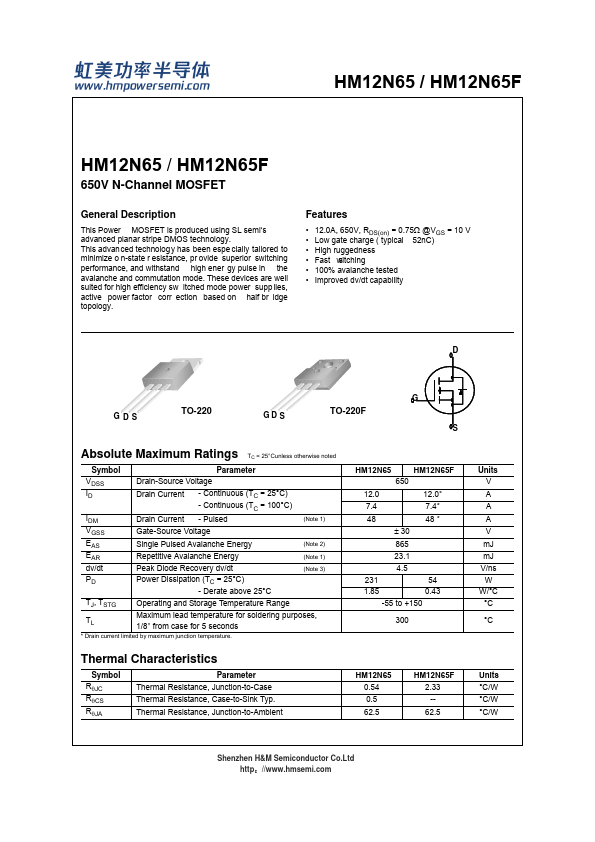

HM12N65F 650V N-Channel MOSFET

This Power MOSFET is produced using SL semi‘s advanced planar stripe DMOS technology. This advanced technology has been espe cially tailored to minimize o n-state r esistance, pr ovide superior switching performance, and withstand high ener gy pulse in the avalanche and commutation mode. These devic.

HM12N65F Features

* 12.0A, 650V, RDS(on) = 0.75Ω @VGS = 10 V

* Low gate charge ( typical 52nC)

* High ruggedness

* Fast wsitching

* 100% avalanche tested

* Improved dv/dt capability {D GDS TO-220 GD S TO-220F

* ◀▲ {G

* {S Absolute Maximum Ratin

HM12N65-HMSemiconductor.pdf

HM12N65F Datasheet Preview — This datasheet PDF includes multiple part numbers: HM12N65F, HM12N65. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HM12N65F, HM12N65

Manufacturer:

H&M Semiconductor

File Size:

364.78 KB

Description:

650v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: HM12N65F, HM12N65.
Please refer to the document for exact specifications by model.
