HM4302A - N-Channel Enhancement Mode Power MOSFET

H&M Semiconductor

📥 Download Datasheet

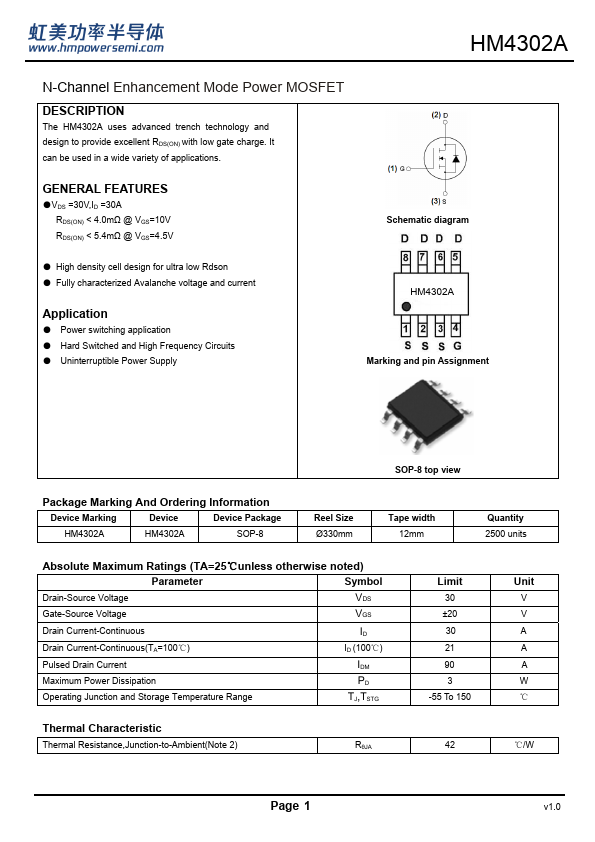

HM4302A Datasheet Preview — Preview of HM4302A PDF

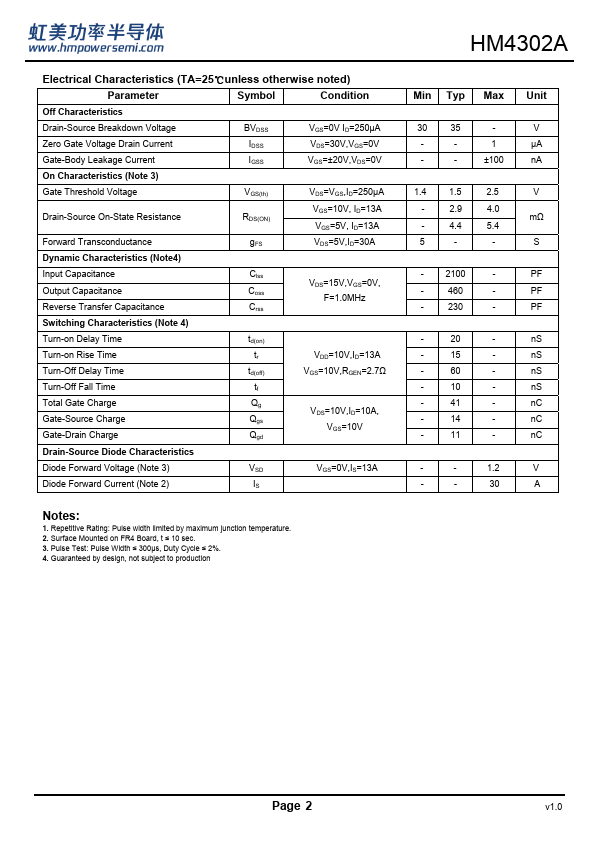

datasheet Preview Page 2

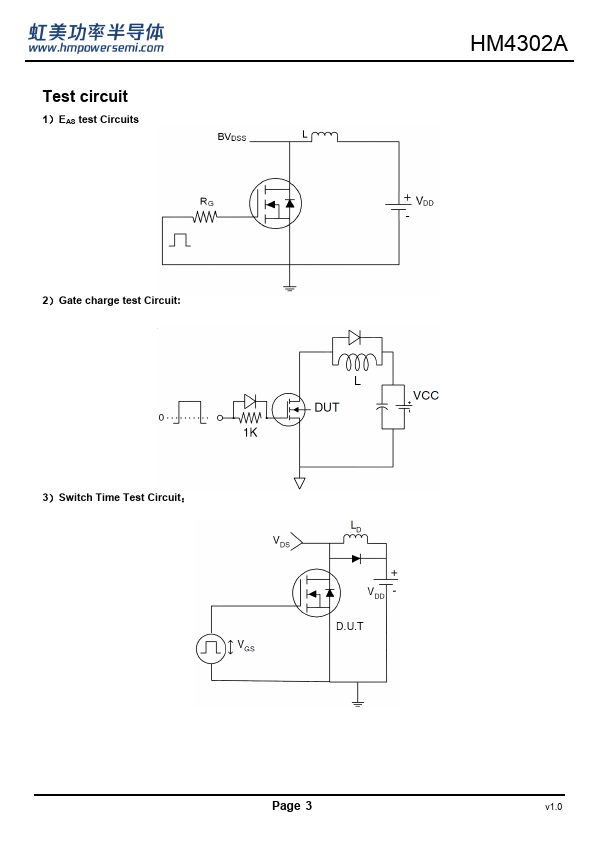

datasheet Preview Page 3

Datasheet Details

Part number	HM4302A
Manufacturer	H&M Semiconductor
File Size	608.71 KB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	HM4302A-HMSemiconductor.pdf

HM4302A Product details

Description

The HM4302A uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

VDS =30V,ID =30A RDS(ON) < 4.0mΩ @ VGS=10V RDS(ON) < 5.4mΩ @ VGS=4.5V Schematic diagram.
High density cell design for ultra low Rdson.
Fully characterized Avalanche voltage and current.
