HM40DN04K - Dual N-Channel Enhancement Mode Power MOSFET

HM40DN04K Description

HM40DN04K Dual N-Channel Enhancement Mode Power MOSFET .
The HM40DN04K uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

HM40DN04K Features

* VDS =40V,ID =40A RDS(ON) < 24mΩ @ VGS=10V RDS(ON) < 35mΩ @ VGS=4.5V
* High density cell design for ultra low Rdson

📥 Download Datasheet

Preview of HM40DN04K PDF

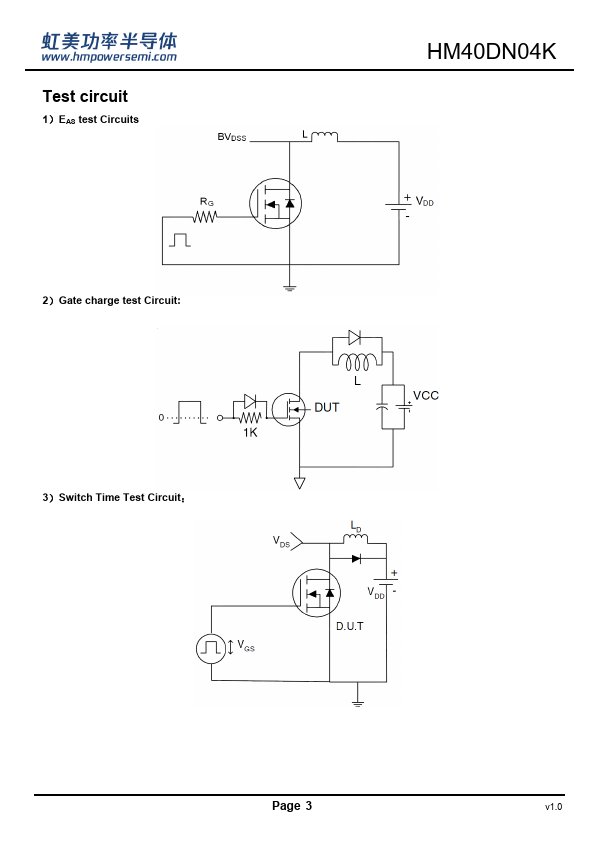

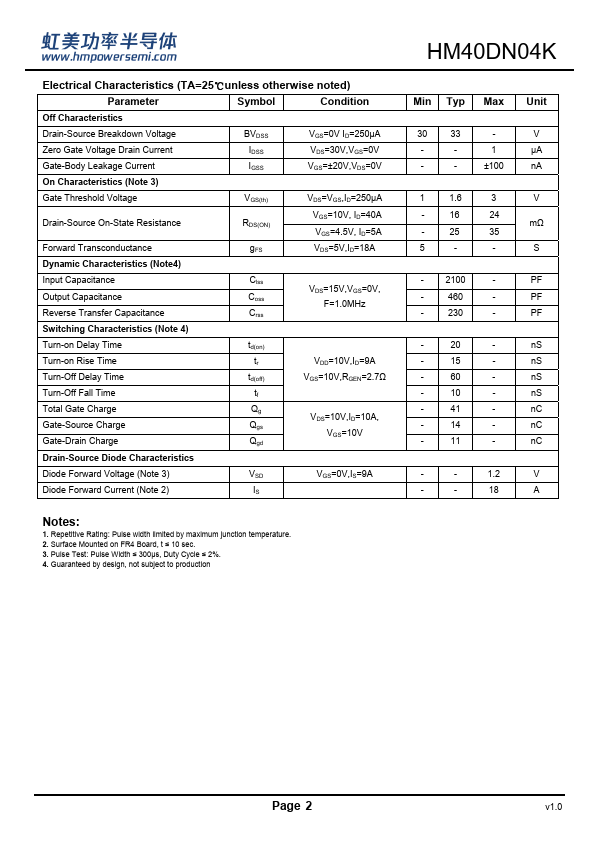

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM40DN04K
Manufacturer
H&M Semiconductor
File Size
915.12 KB
Datasheet
HM40DN04K-HMSemiconductor.pdf
Description
Dual N-Channel Enhancement Mode Power MOSFET
