HM40N15KA - N-Channel Enhancement Mode Power MOSFET

HM40N15KA Description

+01.$ N-Channel Enhancement Mode Power MOSFET .
The +01.

HM40N15KA Features

* VDS =150V,ID =40A RDS(ON) < 45mΩ @ VGS=10V (Typ:35mΩ)
* High density cell design for ultra low Rdson
* Fully characterized avalanche voltage and current
* Good stability and uniformity with high EAS
* Excellent package for good heat dissipation
* Special process technolog

📥 Download Datasheet

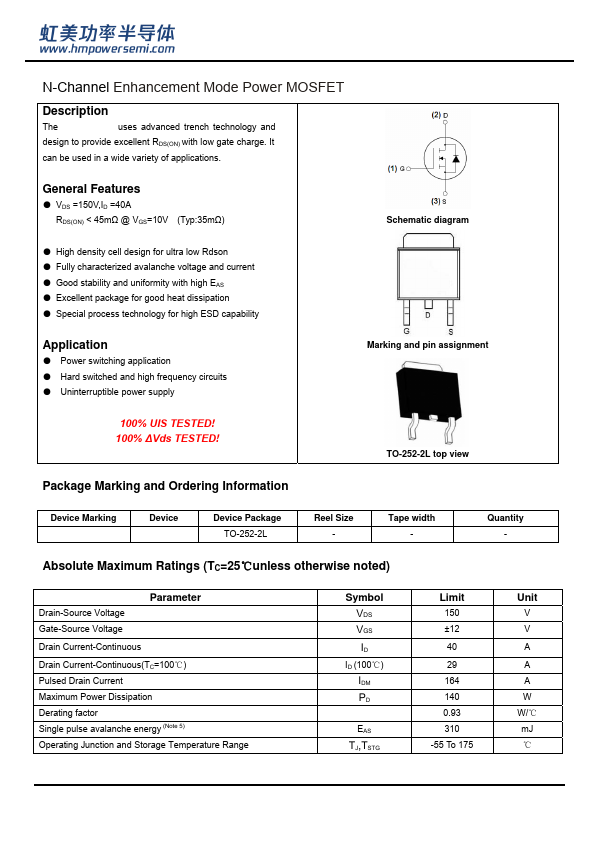

Preview of HM40N15KA PDF

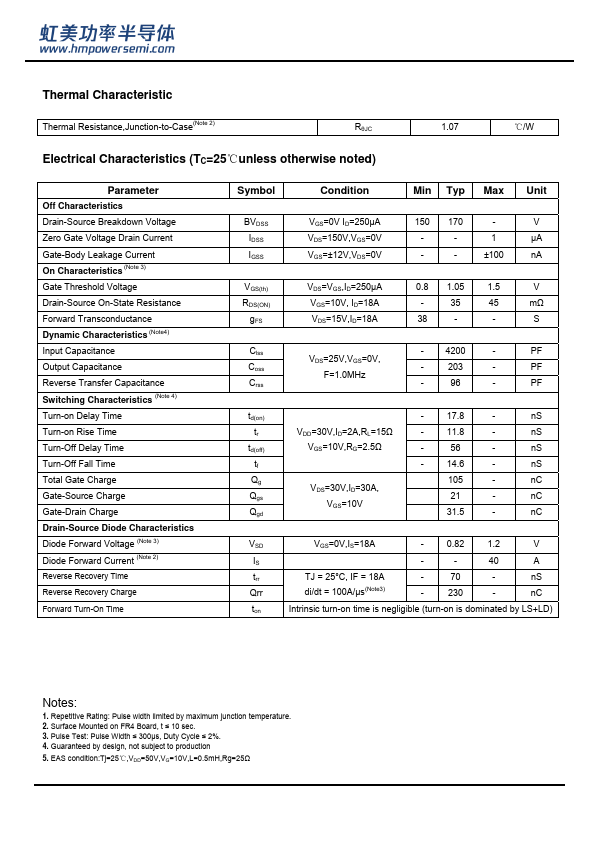

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM40N15KA
Manufacturer
H&M Semiconductor
File Size
412.33 KB
Datasheet
HM40N15KA-HMSemiconductor.pdf
Description
N-Channel Enhancement Mode Power MOSFET
