HM40N06D - N-Channel Enhancement Mode Power MOSFET

HM40N06D Description

HM40N06D N-Channel Enhancement Mode Power MOSFET .
The HM40N06D uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

HM40N06D Features

* VDS =60V,ID =40A RDS(ON) < 11.5mΩ @ VGS=10V (Typ:9.1mΩ)
* High density cell design for ultra low Rdson
* Fully characterized avalanche voltage and current
* Good stability and uniformity with high EAS
* Excellent package for good heat dissipation
* Special process technol

📥 Download Datasheet

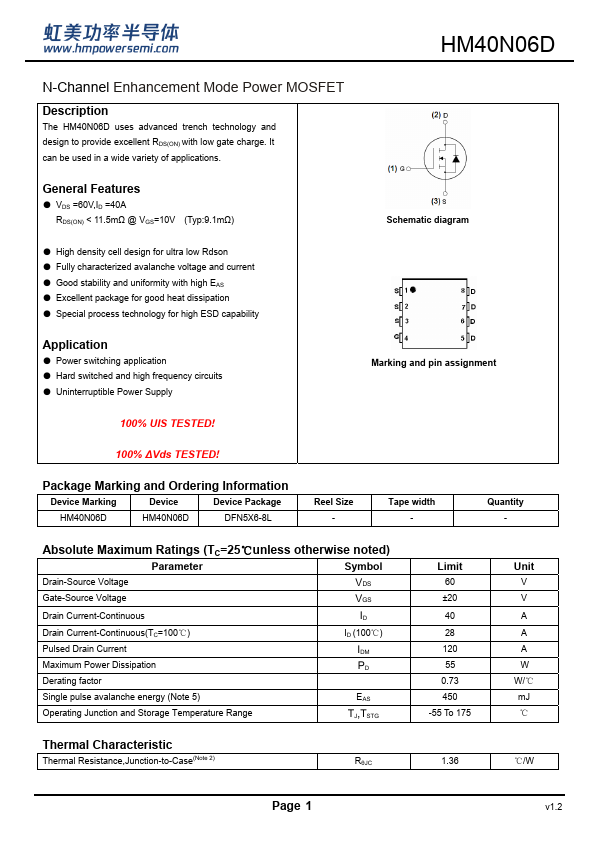

Preview of HM40N06D PDF

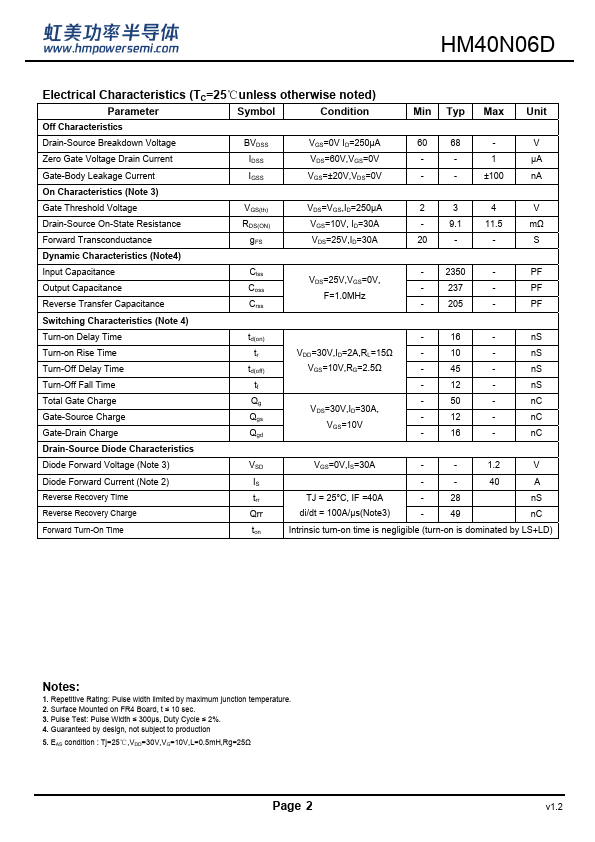

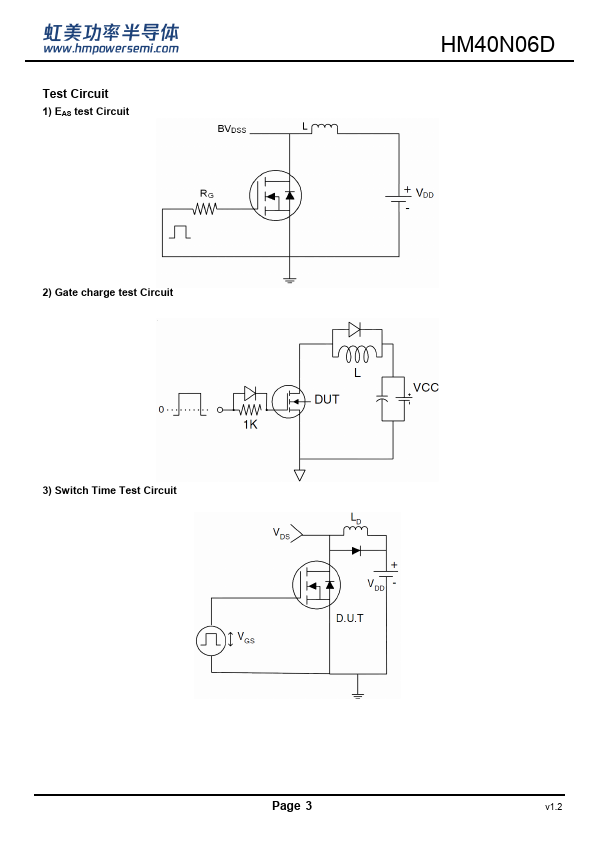

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM40N06D
Manufacturer
H&M Semiconductor
File Size
477.32 KB
Datasheet
HM40N06D-HMSemiconductor.pdf
Description
N-Channel Enhancement Mode Power MOSFET
