HM40N04K Datasheet - H&M Semiconductor

HM40N04K, N-Channel Enhancement Mode Power MOSFET

N-Channel Enhancement Mode Power MOSFET .
The HM40N04K uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

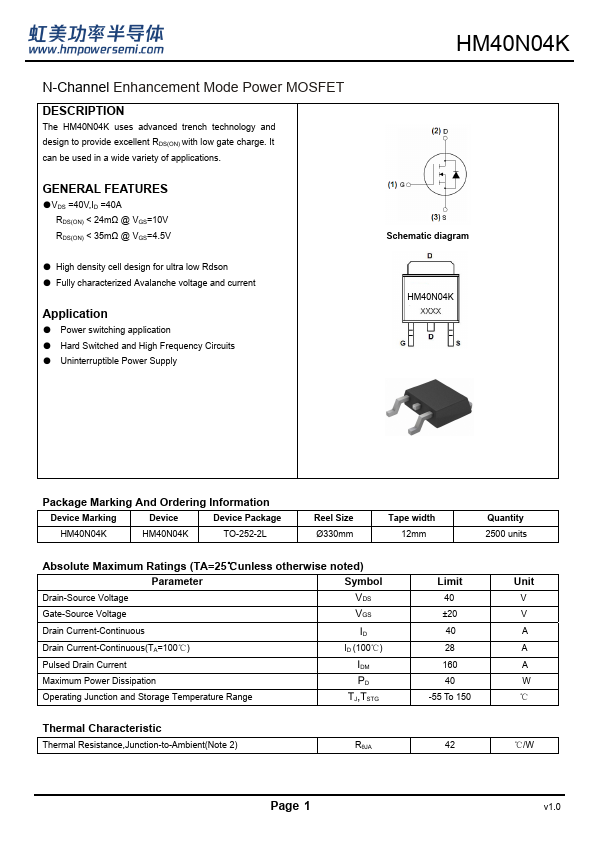

datasheet Preview Page 1 from Datasheet4u.com

HM40N04K-HMSemiconductor.pdf

Preview of HM40N04K PDF

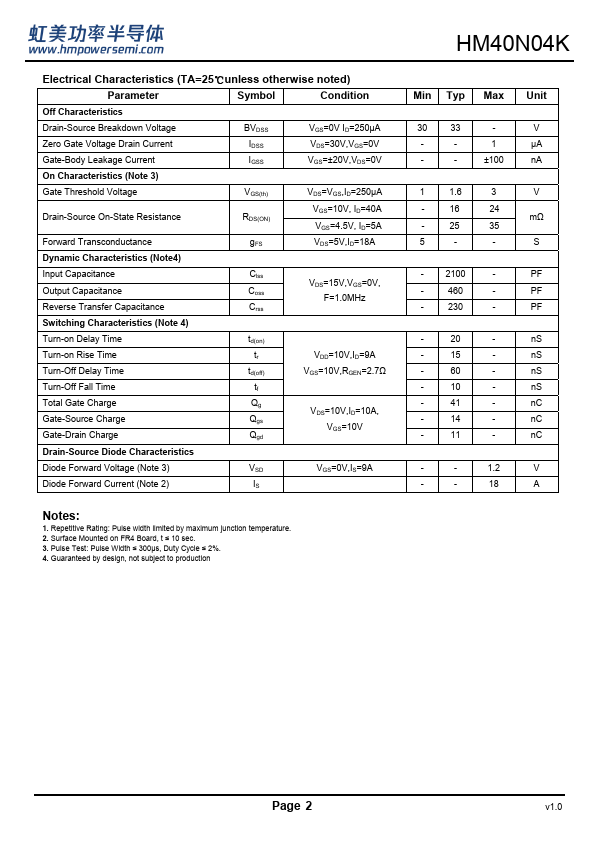

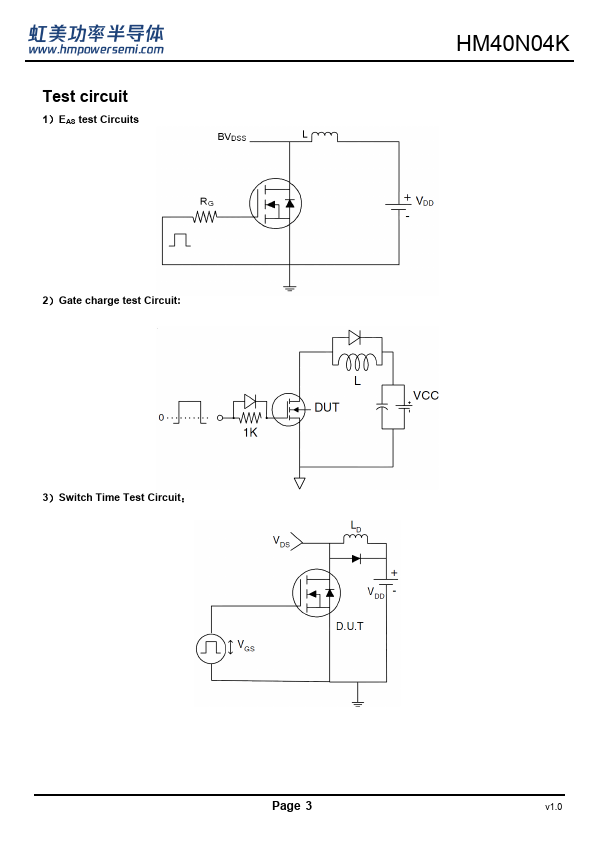

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

HM40N04K

Manufacturer:

H&M Semiconductor

File Size:

610.17 KB

Description:

N-Channel Enhancement Mode Power MOSFET

Features

* VDS =40V,ID =40A RDS(ON) < 24mΩ @ VGS=10V RDS(ON) < 35mΩ @ VGS=4.5V
* High density cell design for ultra low Rdson
