HM4924B 40V Full-Bridge of MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

40V Full-Bridge of MOSFET .
The HM% uses advanced trench technology to provide excellent RDS(ON) and low gate charge .

📥 Download Datasheet

Preview of HM4924B PDF

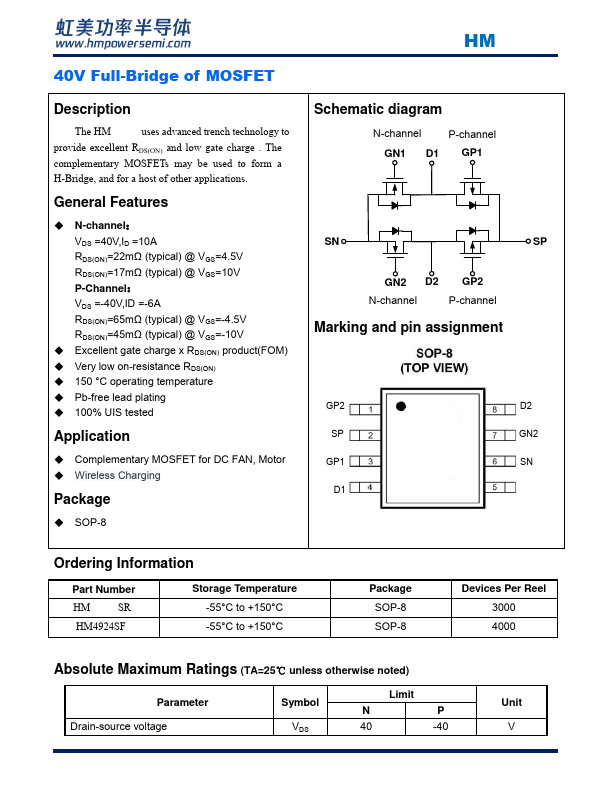

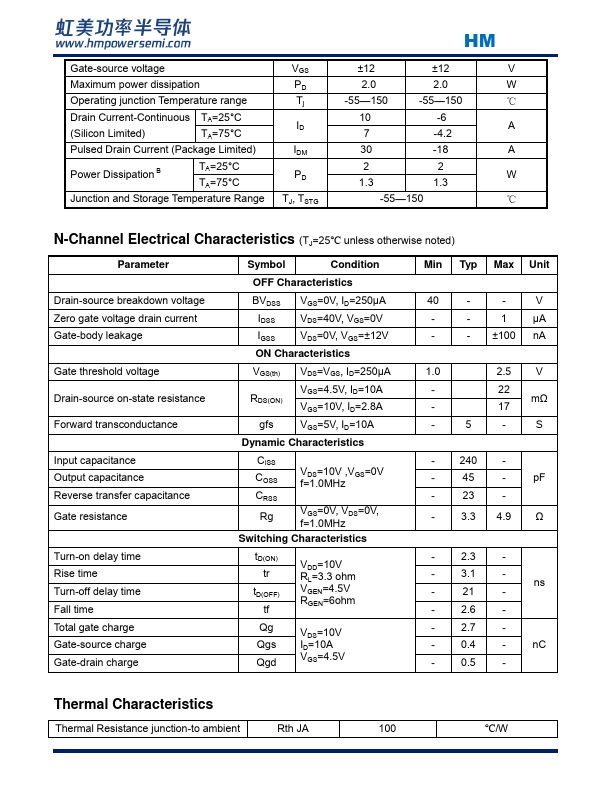

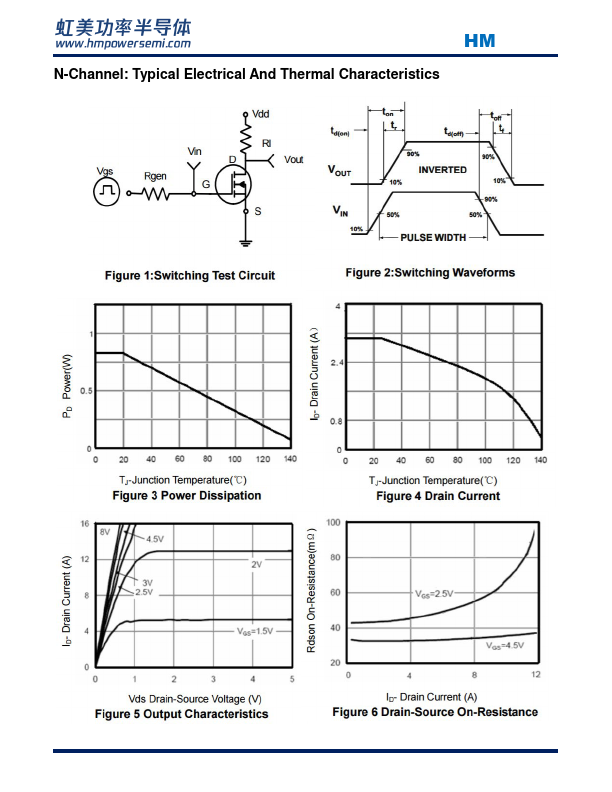

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
HM4924B
Manufacturer
H&M Semiconductor
File Size
1.06 MB
Datasheet
HM4924B-HMSemiconductor.pdf
Description
40V Full-Bridge of MOSFET

Features

* N-channel： VDS =40V,ID =10A RDS(ON)=22mΩ (typical) @ VGS=4.5V RDS(ON)=17mΩ (typical) @ VGS=10V P-Channel： VDS =-40V,ID =-6A RDS(ON)=65mΩ (typical) @ VGS=-4.5V RDS(ON)=45mΩ (typical) @ VGS=-10V
* Excellent gate charge x RDS(ON) product(FOM)
* Very low on-resistance RDS(ON)
* 150 °C
