HM4926 - 60V Full-Bridge of MOSFET

H&M Semiconductor

📥 Download Datasheet

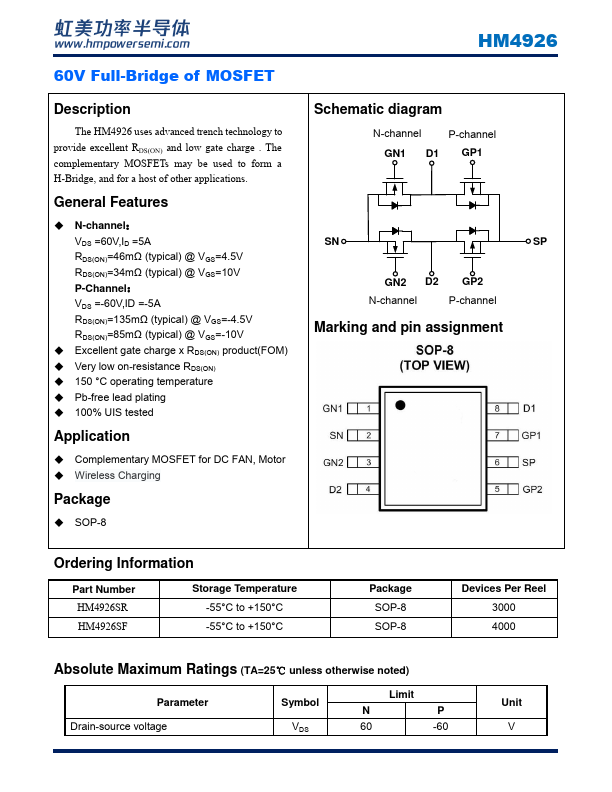

HM4926 Datasheet Preview — Preview of HM4926 PDF

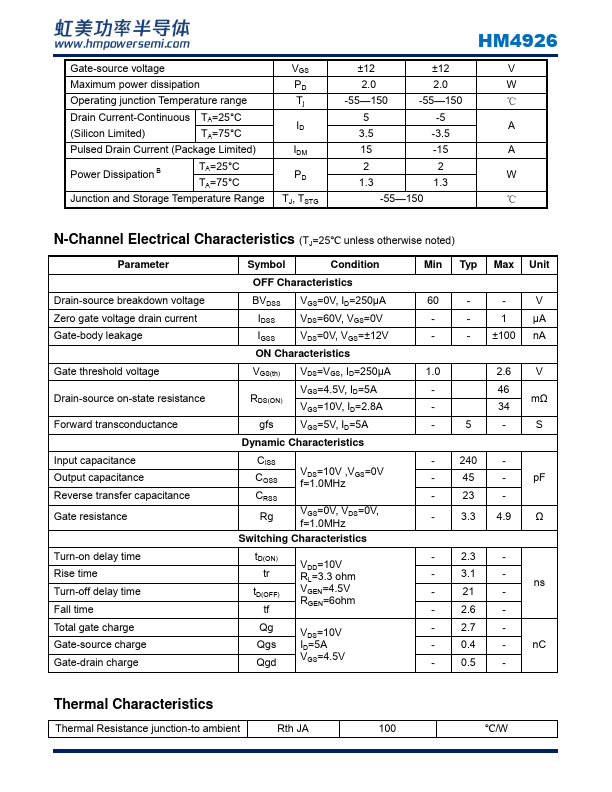

datasheet Preview Page 2

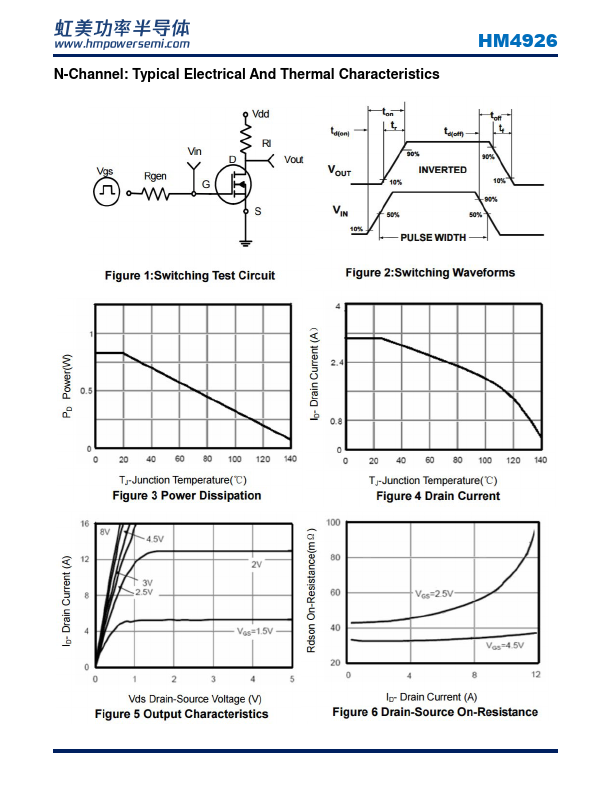

datasheet Preview Page 3

Datasheet Details

Part number	HM4926
Manufacturer	H&M Semiconductor
File Size	1.11 MB
Description	60V Full-Bridge of MOSFET
Datasheet	HM4926-HMSemiconductor.pdf

HM4926 Product details

Description

The HM4926 uses advanced trench technology to provide excellent RDS(ON) and low gate charge .

Features

N-channel： VDS =60V,ID =5A RDS(ON)=46mΩ (typical) @ VGS=4.5V RDS(ON)=34mΩ (typical) @ VGS=10V P-Channel： VDS =-60V,ID =-5A RDS(ON)=135mΩ (typical) @ VGS=-4.5V RDS(ON)=85mΩ (typical) @ VGS=-10V.
Excellent gate charge x RDS(ON) product(FOM).
Very low on-resistance RDS(ON).
150 °C operating temperature.
Pb-free lead plating.
100% UIS tested.
