HM50P02K - P-Channel Enhancement Mode Power MOSFET

Product Overview

H&M Semiconductor

📥 Download Datasheet

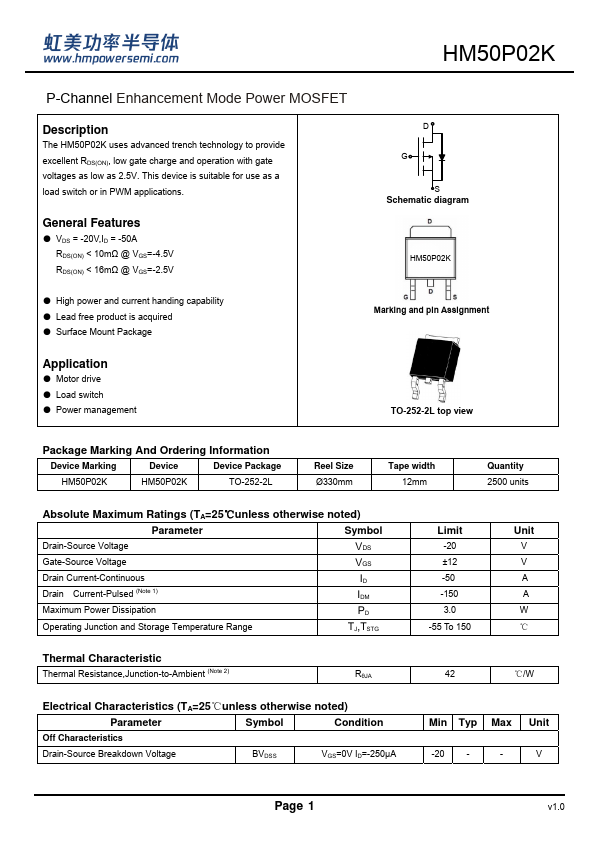

HM50P02K P-Channel Enhancement Mode Power MOSFET by H&M Semiconductor - Datasheet Preview — Datasheet preview – HM50P02K

Datasheet Details

Part number	HM50P02K
Manufacturer	H&M Semiconductor
File Size	612.04 KB
Description	P-Channel Enhancement Mode Power MOSFET
Datasheet	HM50P02K Datasheet

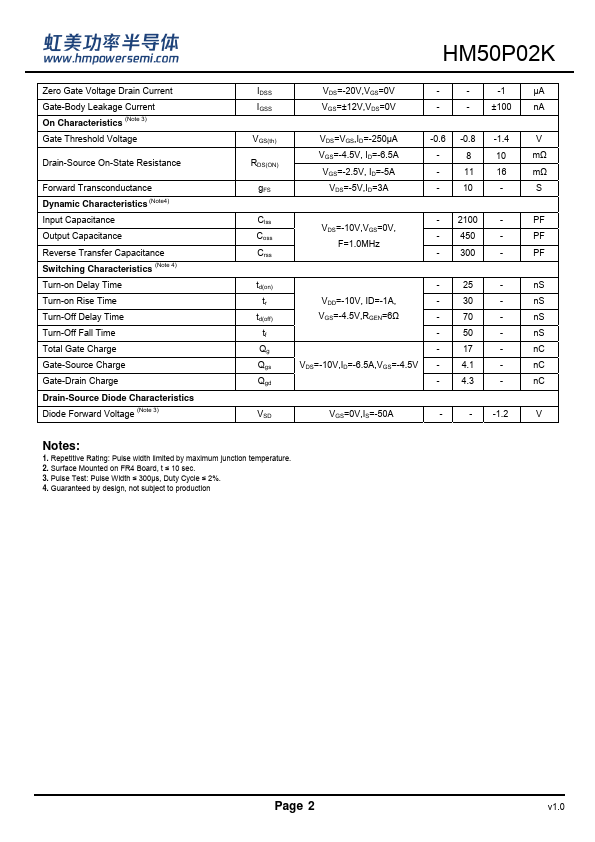

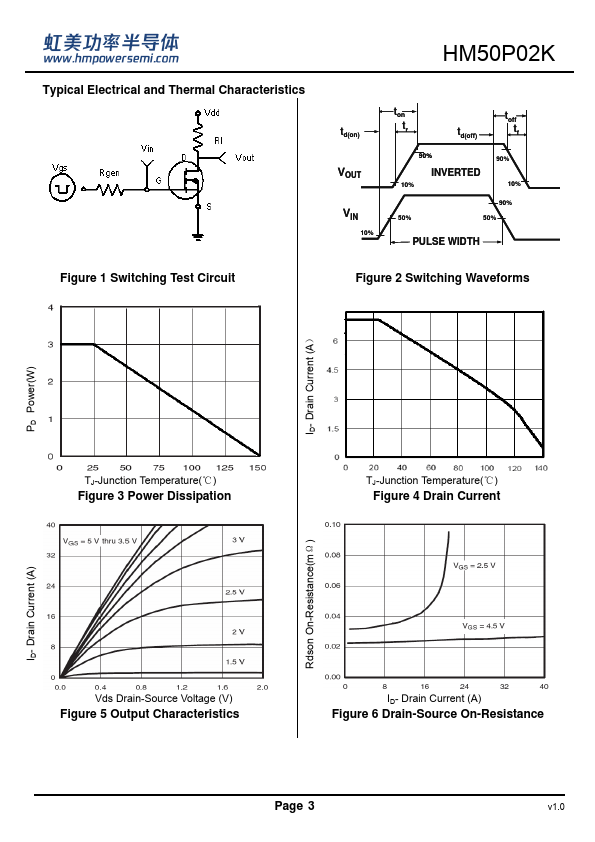

Additional preview pages of the HM50P02K datasheet.

Product details

Description

The HM50P02K uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V.

Features

VDS = -20V,ID = -50A RDS(ON) < 10mΩ @ VGS=-4.5V RDS(ON) < 16mΩ @ VGS=-2.5V.
High power and current handing capability.
Lead free product is acquired.
Surface Mount Package.
