HM50P03D - P-Channel Enhancement Mode Power MOSFET

Product Overview

H&M Semiconductor

📥 Download Datasheet

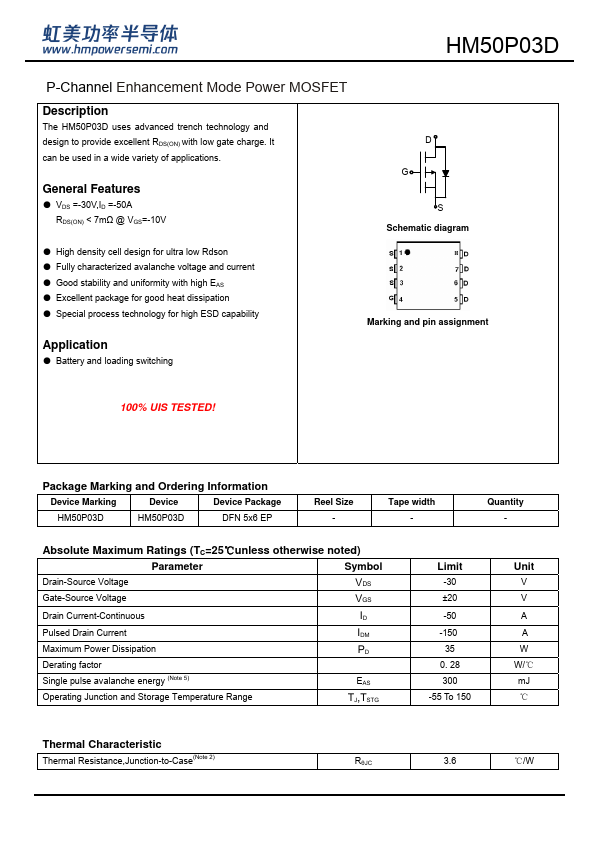

HM50P03D P-Channel Enhancement Mode Power MOSFET by H&M Semiconductor - Datasheet Preview — Datasheet preview – HM50P03D

Datasheet Details

Part number	HM50P03D
Manufacturer	H&M Semiconductor
File Size	360.11 KB
Description	P-Channel Enhancement Mode Power MOSFET
Datasheet	HM50P03D Datasheet

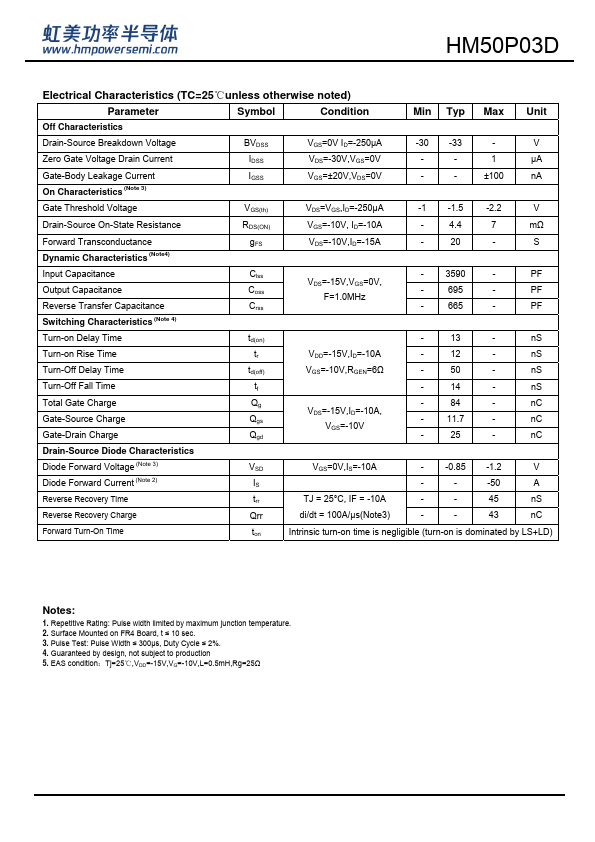

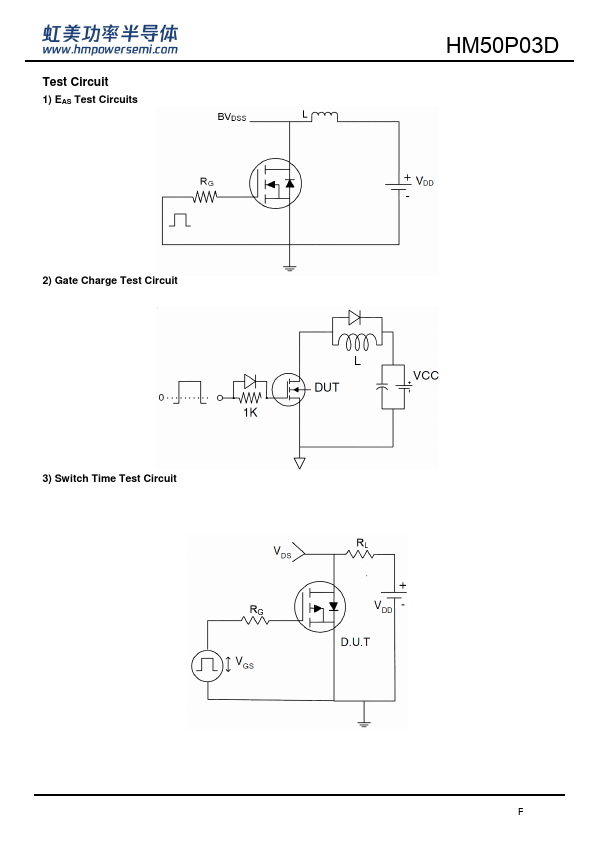

Additional preview pages of the HM50P03D datasheet.

Product details

Description

The HM50P03D uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

VDS =-30V,ID =-50A RDS(ON) < 7mΩ @ VGS=-10V.
High density cell design for ultra low Rdson.
Fully characterized avalanche voltage and current.
Good stability and uniformity with high EAS.
Excellent package for good heat dissipation.
Special process technology for high ESD capability.
