HM65P03D - P-Channel Enhancement Mode Power MOSFET

HM65P03D Description

HM65P03D P-Channel Enhancement Mode Power MOSFET .
The HM65P03D uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

HM65P03D Features

* VDS =-30V,ID =-65A RDS(ON) = 2.8mΩ (Typ) @ VGS=-10V
* High density cell design for ultra low Rdson
* Fully characterized avalanche voltage and current
* Good stability and uniformity with high EAS
* Excellent package for good heat dissipation
* Special process technology fo

📥 Download Datasheet

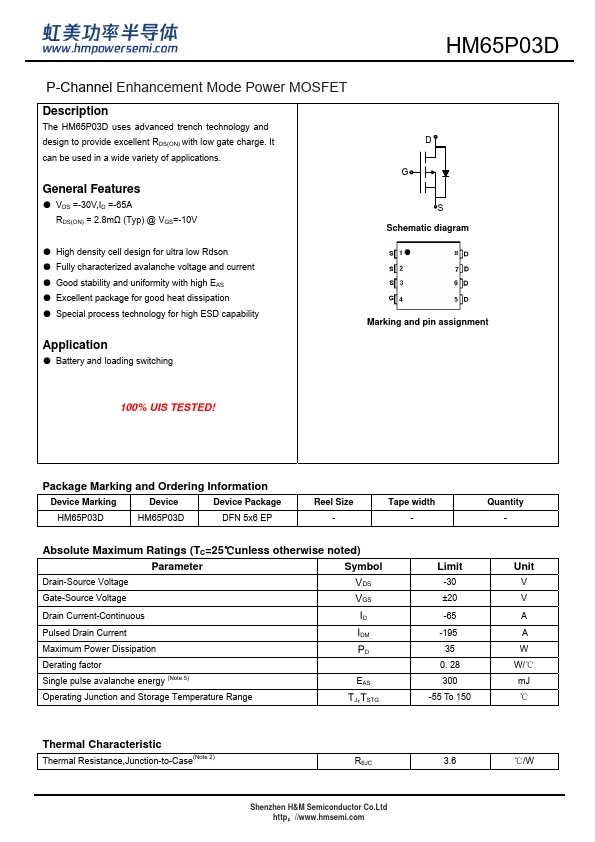

Preview of HM65P03D PDF

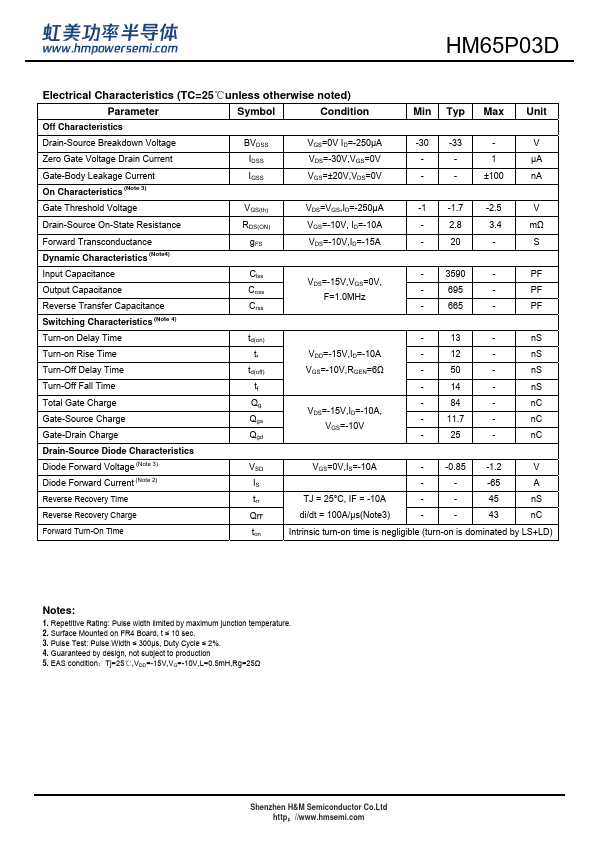

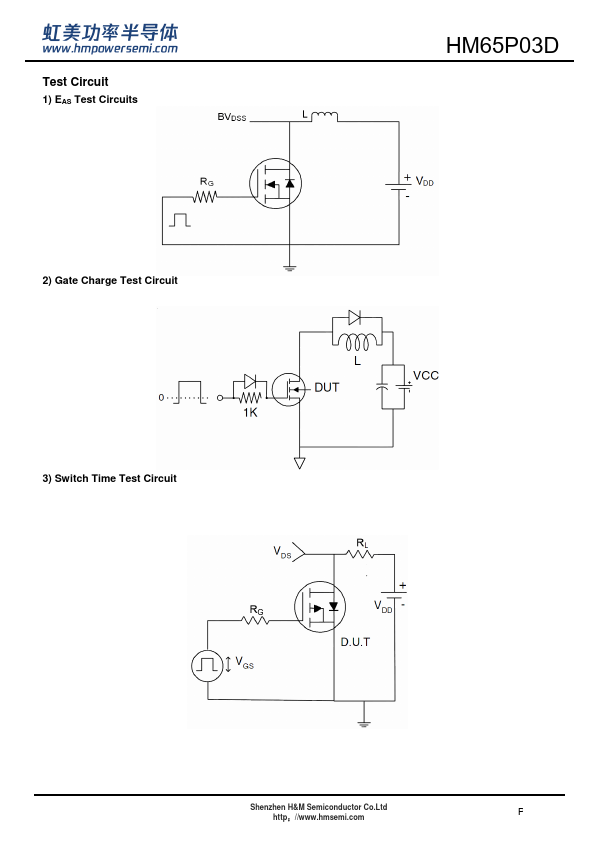

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM65P03D
Manufacturer
H&M Semiconductor
File Size
553.21 KB
Datasheet
HM65P03D-HMSemiconductor.pdf
Description
P-Channel Enhancement Mode Power MOSFET
