HM658128A - 131072-word x 8-bit High Speed CMOS Pseudo Static RAM

Description

Symbol A0 to A16 I/O0 to I/O7 RFSH CE OE WE CS VCC VSS Pin name Address inputs Data input/output Refresh Chip enable Output enable Write enable Chip select Power supply Ground 3 HM658128A Series Block Diagram A0 Address latch control Row decoder Memory matrix (512 × 256) × 8 A8 I/O 0 www.DataS

Features

  • Single 5 V (± 10%).
  • High speed.
  • Access time CE Access time: 80/100/120 ns.
  • Cycle time Random read/ Write cycle time: 130/160/190 ns.
  • Low power:.
  • Active: 300 mW (typ).
  • Standby: 350 µW (typ) (LL-version) 500 µW (typ) (L-version).
  • All inputs and outputs TTL compatible.
  • Non multiplexed address.
  • 512 refresh cycles (8 ms).
  • Refresh functions.
  • Address refresh.
  • Automatic refresh.

📥 Download Datasheet

Datasheet preview – HM658128A

Datasheet Details

Part number HM658128A
Manufacturer Hitachi
File Size 146.90 KB
Description 131072-word x 8-bit High Speed CMOS Pseudo Static RAM
Datasheet download datasheet HM658128A Datasheet
Additional preview pages of the HM658128A datasheet.

📁 Similar Datasheet

  • HM658512A - 4 M PSRAM (512-kword x 8-bit) 2 k Refresh (Hitachi Semiconductor)
  • HM65 - PRECISION METAL FILM RESISTORS (RCD)
  • HM65 - High Current Low Profile Surface Mount Inductors (TT)
  • HM65161 - 2K X 8 General Purpose CMOS SRAM (MHS)
  • HM65P03D - P-Channel Enhancement Mode Power MOSFET (H&M Semiconductor)
  • HM6-6617B883 - 2K x 8 CMOS PROM (Intersil Corporation)
  • HM6-6642-9 - 512 x 8 CMOS PROM (Intersil Corporation)
  • HM6-6642B-9 - 512 x 8 CMOS PROM (Intersil Corporation)
  • HM60 - PRECISION METAL FILM RESISTORS (RCD)
  • HM603K - N&P-Channel complementary Power MOSFET (H&M Semiconductor)
Other Datasheets by Hitachi
  • HM65256B - 32768 word x 8 Bit High Speed Psuedo Statie RAM
  • HM6147H - 4096 x 1-Bit High Speed CMOS SRAM
  • HM6148HLP - 1024 x 4-Bit High Speed CMOS SRAM
  • HM6167 - 16384 x 1-Bit High Speed CMOS SRAM
  • HM6168H - 4096 x 4-Bit High Speed CMOS SRAM
  • HM6207H - 256K High Speed SRAM
  • HM6208 - 4 Bit CMOS Static RAM
  • HM621100A - 1048576 word / 1 Bit High Speed CMOS Static RAM

Full PDF Text Transcription

Click to expand full text

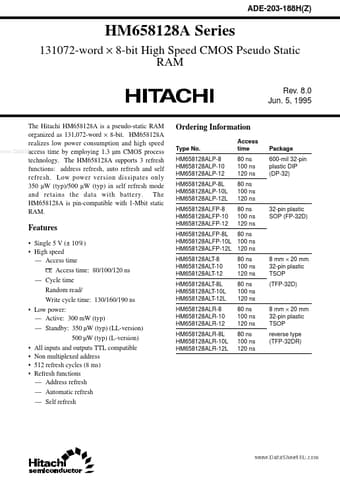

ADE-203-188H(Z) HM658128A Series 131072-word × 8-bit High Speed CMOS Pseudo Static RAM Rev. 8.0 Jun. 5, 1995 The Hitachi HM658128A is a pseudo-static RAM organized as 131,072-word × 8-bit. HM658128A realizes low power consumption and high speed www.DataSheet4U.com access time by employing 1.3 µm CMOS process technology. The HM658128A supports 3 refresh functions: address refresh, auto refresh and self refresh. Low power version dissipates only 350 µW (typ)/500 µW (typ) in self refresh mode and retains the data with battery. The HM658128A is pin-compatible with 1-Mbit static RAM. Ordering Information Type No.
