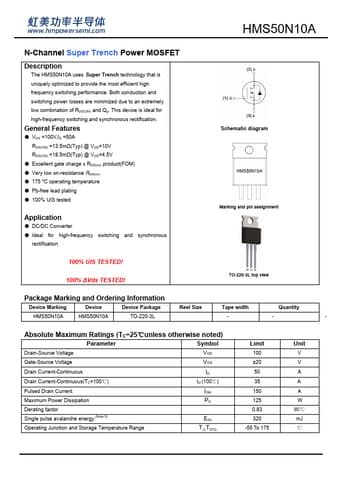

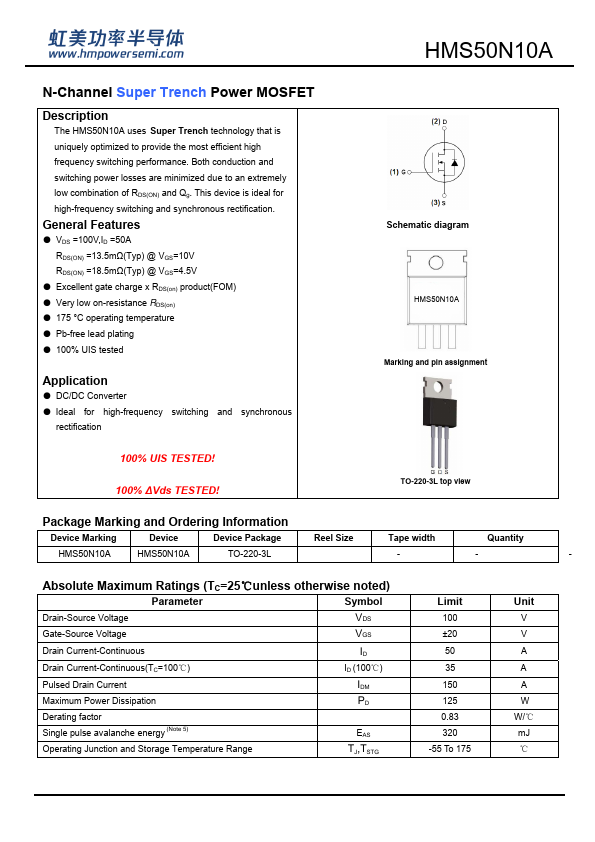

HMS50N10A
Description
The HMS50N10A uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low bination of RDS(ON) and Qg. This device is ideal for high-frequency switching and synchronous rectification.
General Features
- VDS =100V,ID =50A RDS(ON) =13.5mΩ(Typ) @ VGS=10V RDS(ON) =18.5mΩ(Typ) @ VGS=4.5V
- Excellent gate charge x RDS(on) product(FOM)
- Very low on-resistance RDS(on)
- 175 °C operating temperature
- Pb-free lead plating
- 100% UIS tested
Application
- DC/DC Converter
- Ideal for high-frequency switching and synchronous rectification
Schematic diagram
HMS50N10A Marking and pin assignment
100% UIS TESTED! 100% ∆Vds TESTED!
TO-220-3L top view
Package Marking and Ordering Information
Device Marking
Device
Device Package
Reel Size
Tape width
Quantity
TO-220-3L
- -
- Absolute Maximum Ratings (TC=25℃unless...
