HM5309 - PFM Step-Up DC-DC Controller

Datasheet Summary

Description

The HM5309 is a simple, compact PFM boost controller designed for applications where extremely low cost and small size are top priorities.

The output voltage is fixed at 9V with 1% accuracy from an input voltage range of +2.7V to +6.5V.

Features

  • Operating voltage range：2.7V to 6.5V.
  • Low Operating Current: 32uA@5V.
  • Fixed Output Voltage of 9V.
  • High Output voltage accuracy：±1%.
  • No Feedback Resistor needed.
  • Output Voltage can be adjusted upwards with External Resistor.
  • Output Power: up to 40W.
  • High Efficiency: up to 94%.
  • Chip Enable Input.
  • Operating Temperature Range -40°C to +85°C.
  • Available in SOT23-6.
  • Pb-free, rohs-Compliant and Halogen-free Pin Assignment 1 Typical Applicati.

📥 Download Datasheet

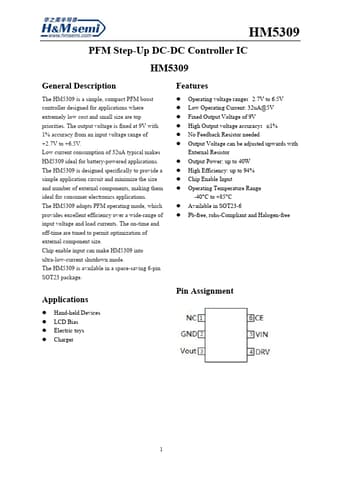

Datasheet preview – HM5309

Datasheet Details

Part number HM5309
Manufacturer H&M semi
File Size 440.56 KB
Description PFM Step-Up DC-DC Controller
Datasheet download datasheet HM5309 Datasheet
Additional preview pages of the HM5309 datasheet.

📁 Similar Datasheet

  • HM530 - HM500 Series / Ac/Dc Switching Modules (Artesyn Technologies)
  • HM530 - N-Channel 100V MOSFET (VBsemi)
  • HM530 - N-Channel Enhancement Mode Power MOSFET (H&M Semiconductor)
  • HM5302 - 2-Bit Voltage Translator / Isolator (H&M Semiconductor)
  • HM530281 - 8 BIT FRAME MEMORY (Hitachi Semiconductor)
  • HM53051 - 4-BIT FRAME MEMORY (Hitachi Semiconductor)
  • HM53 - High Power Low Cost Inductors (ETC)
  • HM53-001R1H - High Power Low Cost Inductors (ETC)
  • HM53-001R1V - High Power Low Cost Inductors (ETC)
  • HM53-001R6H - High Power Low Cost Inductors (ETC)
Other Datasheets by H&M semi
  • HM5312 - Low Quiescent Current_Low Dropout CMOS Voltage Regulator
  • HM5315 - Low Quiescent Current_Low Dropout CMOS Voltage Regulator
  • HM5318 - Low Quiescent Current_Low Dropout CMOS Voltage Regulator
  • HM5321 - Low Quiescent Current_Low Dropout CMOS Voltage Regulator
  • HM5325 - Low Quiescent Current_Low Dropout CMOS Voltage Regulator
  • HM5327 - Low Quiescent Current_Low Dropout CMOS Voltage Regulator
  • HM5328 - Low Quiescent Current_Low Dropout CMOS Voltage Regulator
  • HM5330 - Low Quiescent Current_Low Dropout CMOS Voltage Regulator

Full PDF Text Transcription

Click to expand full text
HM5309 PFM Step-Up DC-DC Controller IC HM5309 General Description The HM5309 is a simple, compact PFM boost controller designed for applications where extremely low cost and small size are top priorities. The output voltage is fixed at 9V with 1% accuracy from an input voltage range of +2.7V to +6.5V. Low current consumption of 32uA typical makes HM5309 ideal for battery-powered applications. The HM5309 is designed specifically to provide a simple application circuit and minimize the size and number of external components, making them ideal for consumer electronics applications. The HM5309 adopts PFM operating mode, which provides excellent efficiency over a wide-range of input voltage and load currents.
