HM730F, HM730 Datasheet - H&M semi

HM730F 400V N-Channel MOSFET

This Power MOSFET is produced using SL semi‘s advanced planar stripe DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices ar.

HM730F Features

* 6.0A, 400V, RDS(on) = 1.00Ω @VGS = 10 V

* Low gate charge ( typical 18nC)

* Fast switching

* 100% avalanche tested

* Improved dv/dt capability {D GDS TO-220 GD S TO-220F

* ◀▲ {G

* {S Absolute Maximum Ratings TC = 25°Cunless otherwis

HM730-HMsemi.pdf

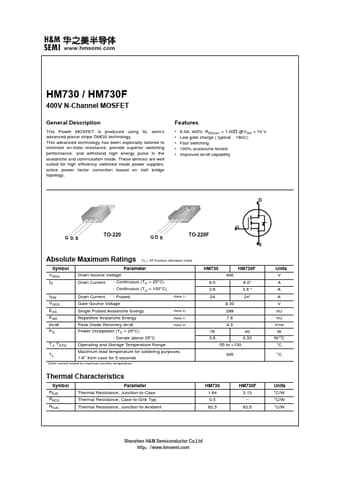

HM730F Datasheet Preview — This datasheet PDF includes multiple part numbers: HM730F, HM730. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HM730F, HM730

Manufacturer:

H&M semi

File Size:

296.89 KB

Description:

400v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: HM730F, HM730.
Please refer to the document for exact specifications by model.
