L12557-01SR Datasheet - HAMAMATSU

L12557-01SR Photo IC

Photo IC for optical link L12557-01SR, S12423-01SR Transmitter/receiver photo IC for DC to 10 Mbps optical link The L12557-01SR transmitter photo IC combines a 650 nm red LED, which is suitable for plastic optical fiber (POF) communication, and a driver IC. It has a mini molded lens suitable for coupling to the POF. It supports communication speeds ranging from DC to 10 Mbps. The S12423-01SR receiver photo IC has monolithically integrated PIN photodiode and signal processing circuit. It featur.

L12557-01SR Features

* small size and strong resistance to electromagnetic induction noise. The S12423-01SR generates digital output (CMOS). Features Applications L12557-01SR Transmitter photo IC Peak emission wavelength: 650 nm Supports DC to 10 Mbps communication S12423-01SR Receiver photo IC Supports DC to 10 Mbps c

L12557-01SR Datasheet (269.15 KB)

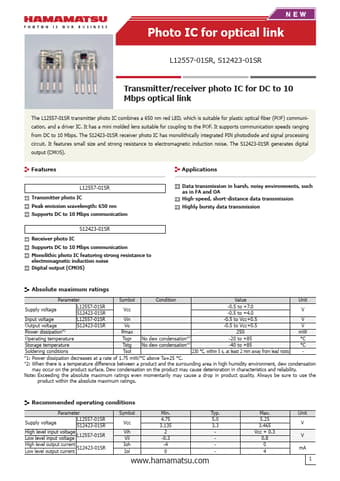

Preview of L12557-01SR PDF
L12557-01SR Datasheet Preview Page 2 L12557-01SR Datasheet Preview Page 3

Datasheet Details

Part number:

L12557-01SR

Manufacturer:

HAMAMATSU

File Size:

269.15 KB

Description:

Photo ic.
