HPM3415 - P-Channel Enhancement-Mode MOSFET

HAOHAI

Datasheet Details

Part number	HPM3415
Manufacturer	HAOHAI
File Size	272.55 KB
Description	P-Channel Enhancement-Mode MOSFET
Datasheet	HPM3415-HAOHAI.pdf

　.

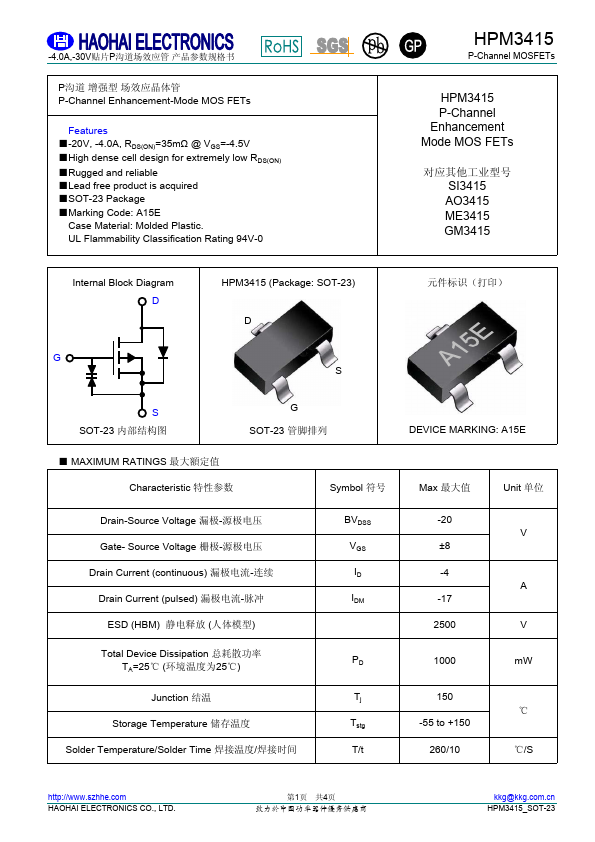

-20V, -4.0A, RDS(ON)=35mΩ @ VGS=-4.5V 　.
High dense cell design for extremely low RDS(ON) 　.
Rugged and reliable 　.
Lead free product is acquired 　.
SOT-23 Package 　.
Marking Code: A15E 　　Case Material: Molded Plastic. 　　UL Flammability Classification Rating 94V-0 HPM3415 P-Channel MOSFETs HPM3415 P-Channel Enhancement Mode MOS FETs SI3415 AO3415 ME3415 GM3415 Internal Block Diagram D HPM3415 (Package: SOT-23) D （） G S S SOT-23 G SOT-23 DEVICE.
