HPM3401A - P-Channel MOSFET

HPM3401A Description

-4.2A,-30VP 　P 　P-Channel Enhancement-Mode MOS FETs 　　.

HPM3401A Features

* 　
* -30V, -4.2A, RDS(ON)=53mΩ @ VGS=-4.5V 　
* High dense cell design for extremely low RDS(ON) 　
* Rugged and reliable 　
* Lead free product is acquired 　
* SOT-23 Package 　
* Marking Code: X1 　　Case Material: Molded Plastic. 　　UL Flammability Classification Rating 94V-0 Internal Block

📥 Download Datasheet

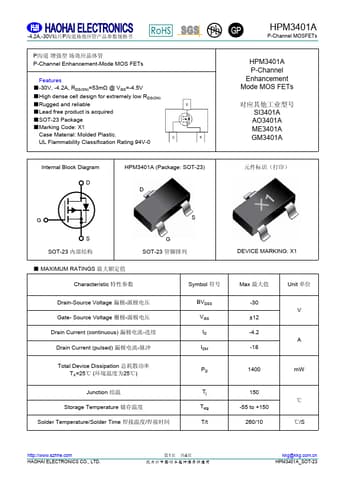

Preview of HPM3401A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HPM3401A
Manufacturer
HAOHAI
File Size
273.45 KB
Datasheet
HPM3401A-HAOHAI.pdf
Description
P-Channel MOSFET
