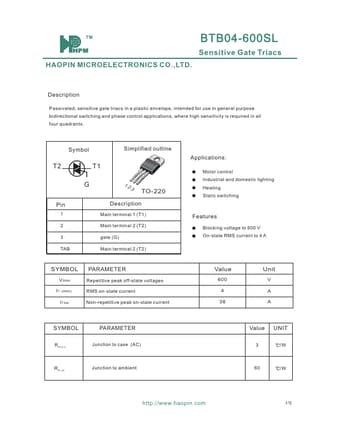

BTB04-600SL Sensitive Gate Triacs

Passivated, sensitive gate triacs in a plastic envelope, intended for use in general purpose bidirectional switching and phase control applications, where high sensitivity is required in all four quadrants. Symbol Simplified outline Applications: T2 G Pin 1 2 3 TAB T1 Motor control Industrial an.

BTB04-600SL Features

* Blocking voltage to 600 V On-state RMS current to 4 A SYMBOL V DRM PARAMETER Repetitive peak off-state voltages Value 600 4 38 Unit V A A IT RMS RMS on-state current Non-repetitive peak on-state current I TSM SYMBOL R th (j-c) PARAMETER Junction to case (AC) Value 3 UNIT /W R th j-a Ju
