BTB06-600BW

Three quadrant triacs

BTB06-600BW Features

* Blocking voltage to 600 V On-state RMS current to 6 A Value 600 6 63 Unit V A A SYMBOL PARAMETER Rth( j-c) Junction to case(AC) Rth( j-a) Junction to ambient CONDITIONS MIN TYP - 1.8 MAX UNIT - /W - 60 - /W http://www.haopin.com 1/5 TM HPM HAOPIN MICROELECTRONICS CO.,LTD. BTB06

BTB06-600BW General Description

Passivated high commutation triacs in a plastic envelope intended for use in circuits where high static and dynamic dV/dt and high dI/dt can occur. These devices will commutate the full rated ms current at the maximum rated junction temperature without the aid of a snubber. Symbol T2 T1 Simplifi.

BTB06-600BW Datasheet (414.28 KB)

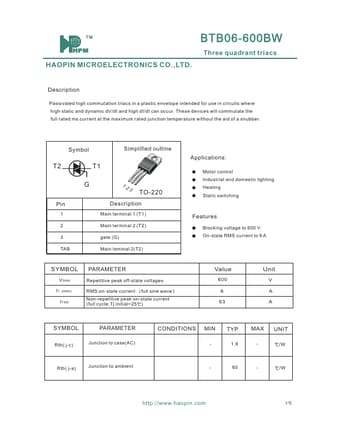

Preview of BTB06-600BW PDF

Datasheet Details

Part number:

BTB06-600BW

Manufacturer:

HAOPIN

File Size:

414.28 KB

Description:

Three quadrant triacs.
