BTB08-600SW Datasheet - HAOPIN

Three quadrant triacs

BTB08-600SW Features

* Blocking voltage to 600 V On-state RMS current to 8 A Value 600 8 84 Unit V A A SYMBOL PARAMETER Rth( j-c) Junction to case(AC) Rth( j-a) Junction to ambient CONDITIONS MIN TYP - 1.6 MAX UNIT - /W - 60 - /W http://www.haopin.com 1/5 TM HPM HAOPIN MICROELECTRONICS CO.,LTD. BTB08

BTB08-600SW General Description

Passivated high commutation triacs in a plastic envelope intended for use in circuits where high static and dynamic dV/dt and high dI/dt can occur. These devices will commutate the full rated ms current at the maximum rated junction temperature without the aid of a snubber. Symbol T2 T1 Simplifi.

BTB08-600SW Datasheet (424.50 KB)

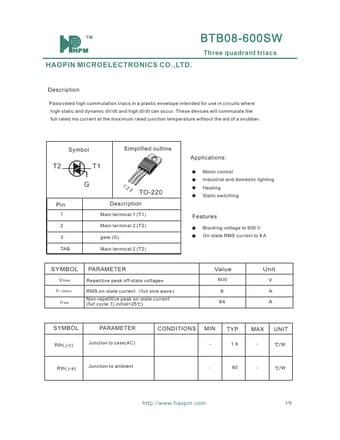

Preview of BTB08-600SW PDF

Datasheet Details

Part number:

BTB08-600SW

Manufacturer:

HAOPIN

File Size:

424.50 KB

Description:

Three quadrant triacs.
