MCR310-6 Datasheet - HAOPIN

SCRs

MCR310-6 Features

* Blocking voltage to 800 V On-state RMS current to 10 A Ultra low gate trigger current SYMBOL PARAMETER VDRM IT RMS Repetitive peak off-state voltages (Tj=-40 to 110oC 1/2Sine Wave,RGK=1K On-state rms current ITSM Peak non-repetitive surge current MCR310-6 MCR310-8 MCR310-10 Value 400 600 800

MCR310-6 General Description

Glass passivated, sensitive gate thyristors in a plastic envelope, intended for use in general purpose switching and phase control applications. These devices are intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits. Symbol Sim.

MCR310-6 Datasheet (278.43 KB)

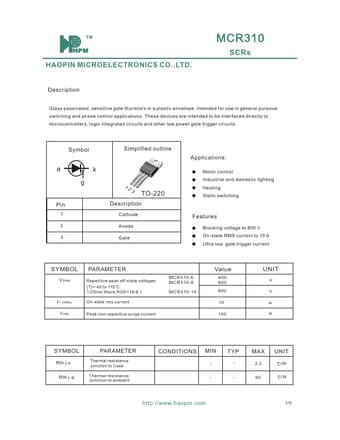

Preview of MCR310-6 PDF

Datasheet Details

Part number:

MCR310-6

Manufacturer:

HAOPIN

File Size:

278.43 KB

Description:

Scrs.
