MCR72-8

SCRs

MCR72-8 Features

* Blocking voltage to 600 V On-state RMS current to 8 A Ultra low gate trigger current SYMBOL PARAMETER VDRM IT RMS Repetitive peak off-state voltages On-state rms current ITSM Peak non-repetitive surge current MCR72-6 MCR72-8 Value 400 600 8 100 Unit V A A SYMBOL PARAMETER R JC Thermal re

MCR72-8 General Description

Glass passivated, sensitive gate thyristors in a plastic envelope, intended for use in general purpose switching and phase control applications. These devices are intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits. Symbol Sim.

MCR72-8 Datasheet (163.10 KB)

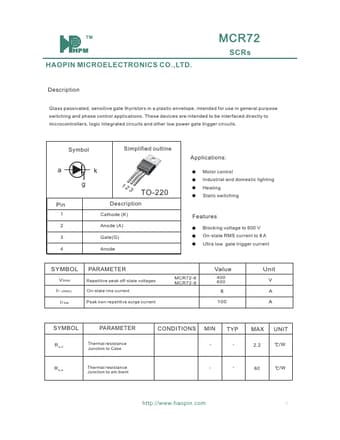

Preview of MCR72-8 PDF

Datasheet Details

Part number:

MCR72-8

Manufacturer:

HAOPIN

File Size:

163.10 KB

Description:

Scrs.
