Part number: Z0103MN
Manufacturer: HAOPIN
File Size: 395.32KB
Download: 📄 Datasheet
Description: Sensitive Gate Triacs
Blocking voltage to 600 V On-state RMS current to 1 A
SYMBOL
VDRM IT RMS
ITSM
PARAMETER
Repetitive peak off-state voltages RMS on-state current
Z0103MN Z0103NN
Non-re.
where high sensitivity is required in all four quadrants.
Symbol
T2
T1
G
Simplified outline
123
Pin
1 2 3 TAB
D.

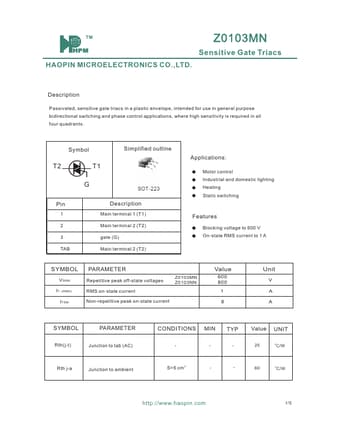

Passivated, sensitive gate triacs in a plastic envelope, intended for use in general purpose bidirectional switching and phase control applications, where high sensitivity is required in all four quadrants.
Symbol
T2
T1
G
Simplified outline
123.
