SX31S003 Datasheet - HITACHI

SX31S003 LCD_Module

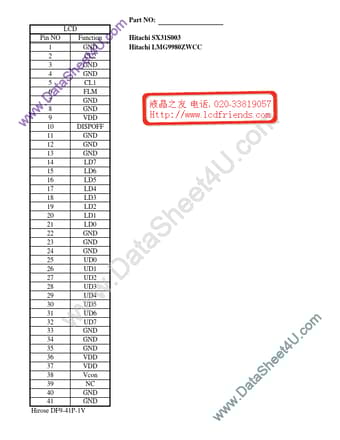

LCD Pin NO Function 1 GND 2 CL2 3 GND 4 GND 5 CL1 6 FLM 7 GND 8 GND 9 VDD 10 DISPOFF 11 GND 12 GND 13 GND 14 LD7 15 LD6 16 LD5 17 LD4 18 LD3 19 LD2 20 LD1 21 LD0 22 GND 23 GND 24 GND 25 UD0 26 UD1 27 UD2 28 UD3 29 UD4 30 UD5 31 UD6 32 UD7 33 GND 34 GND 35 GND 36 VDD 37 VDD 38 Vcon 39 NC 40 GND 41 GND Hirose DF9-41P-1V w w a D . w S a t e e h U 4 t m o SX31S003 .c Hitachi Hitachi LMG9980ZWCC Part NO: w w .D w t a S a e h t e U 4 .c m o w w w .D a S a t e e h U 4 t m o ..

SX31S003 Datasheet (58.64 KB)

SX31S003 Datasheet Preview — Preview of SX31S003 PDF

Datasheet Details

Part number:

SX31S003

Manufacturer:

HITACHI

File Size:

58.64 KB

Description:

Lcd_module.
