SX33, SX32, (SX32 - SX39) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

DATA SHEET SX32~SX39 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE- 20 to 90 Volts CURRENT- 3.0 Amperes SMA / DO-214AC Unit: inch ( mm ) .

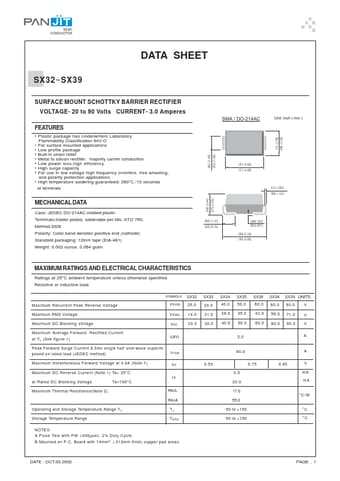

datasheet Preview Page 1 from Datasheet4u.com

SX32_PanJitInternational.pdf

SX33 Datasheet Preview — This datasheet PDF includes multiple part numbers: SX33, SX32. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SX33, SX32

Manufacturer:

Pan Jit International

File Size:

43.40 KB

Description:

(SX32 - SX39) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: SX33, SX32.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

Applications

* Low profile package
* Built-in strain relief
* Metal to silicon rectifier. majority carrier conduction
* Low power loss,high efficiency
* High surge capacity
* For use in low voltage high frequency inverters, free wheeling, and polarity protection ap
