HLS-14F3D-DC12V-C Datasheet - HLS

HLS-14F3D-DC12V-C Relay

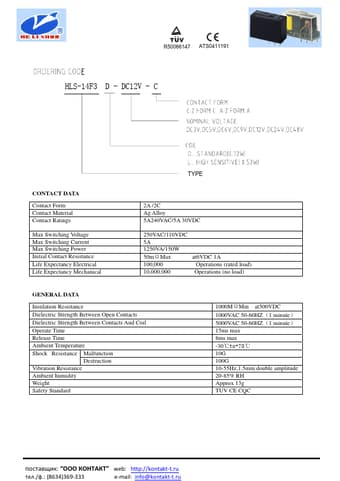

R50066147 ATS0411191 HLS-14F3 D - DC12V - C CONTACT DATA Contact Form Contact Material Contact Ratings Max Switching Voltage Max Switching Current Max Switching Power Initial Contact Resistance Life Expectancy Electrical Life Expectancy Mechanical TYPE 2A /2C Ag Alloy 5A240VAC/5A 30VDC 250VAC/110VDC 5A 1250VA/150W 50mΩMax at6VDC 1A 100,000 Operations (rated load) 10,000,000 Operations (no load) GENERAL DATA Insulation Resistance Dielectric Strength Between Open Contacts Dielectric S.

HLS-14F3D-DC12V-C Datasheet (193.31 KB)
