SS413, SS400 Datasheet - HONEYWELL

SS413 Hall-effect Digital Position Sensor

The SS400 Series and SS500 Series are small and versatile digital Hall-effect devices that are operated by the magnetic field from a permanent magnet or an electromagnet, and are designed to respond to alternating North and South poles, or to a South pole only. They are available in bipolar, latchin.

SS413 Features

* Quad Hall IC design minimizes mechanical stress effects

* Temperature-compensated magnetics help provide stable operation over a wide temperature range of -40°C to 150°C [-40°F to 302°F]

* Broad, inclusive supply voltage capability from 3.8 Vdc to 30 Vdc for application fle

SS400-HONEYWELL.pdf

This datasheet PDF includes multiple part numbers: SS413, SS400. Please refer to the document for exact specifications by model.

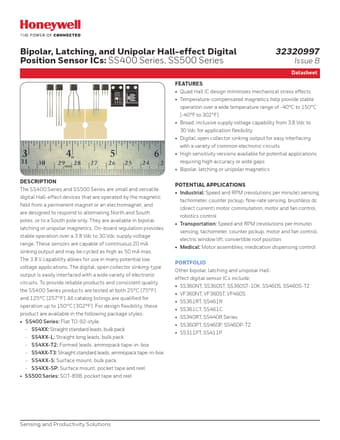

SS413 Datasheet Preview Page 2 SS413 Datasheet Preview Page 3

Datasheet Details

Part number:

SS413, SS400

Manufacturer:

HONEYWELL

File Size:

1.27 MB

Description:

Hall-effect digital position sensor.

Note:

This datasheet PDF includes multiple part numbers: SS413, SS400.
Please refer to the document for exact specifications by model.
