| Part number | HY3010B, HY3010P |
|---|---|
| Manufacturer | HOOYI |
| File Size | 400.10 KB |
| Description | N-Channel Enhancement Mode MOSFET |
| Datasheet |
 HY3010P-HOOYI.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: HY3010B, HY3010P. Please refer to the document for exact specifications by model. |

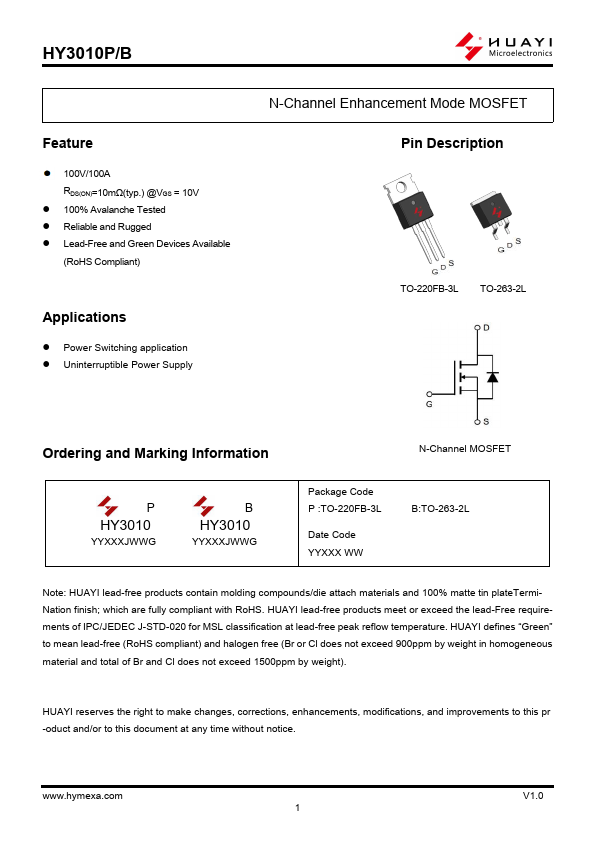

TO-220FB-3L TO-263-2L Ordering and Marking Information P HY3010 YYXXXJWWG B HY3010 YYXXXJWWG N-Channel MOSFET Package Code P :TO-220FB-3L Date Code YYXXX WW B:TO-263-2L Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plateTermiNation finish; which are fully compliant with RoHS.HUAYI lead-free products meet or exceed the lead-Free requirements of IPC/JEDEC J-STD-020 for MSL classification at lead-free peak reflow temperature.HUAYI defines
