| Part number | HYG054N09NS1B |
|---|---|
| Manufacturer | HOOYI |
| File Size | 1.31 MB |
| Description | N-Channel Enhancement Mode MOSFET |
| Datasheet |
 HYG054N09NS1B Datasheet
|
| Note |
This datasheet PDF includes multiple part numbers: HYG054N09NS1B, HYG054N09NS1P. Please refer to the document for exact specifications by model. |
|
|

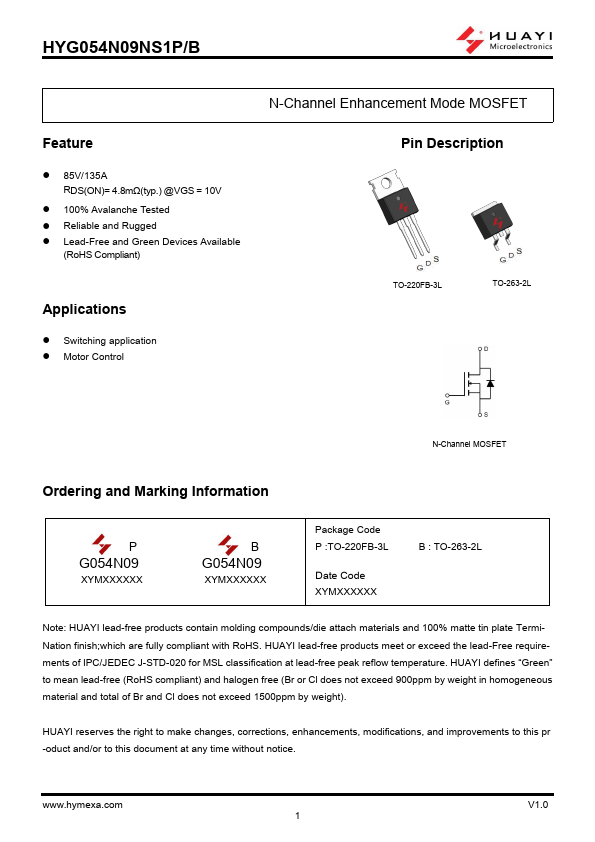

TO-220FB-3L TO-263-2L N-Channel MOSFET Ordering and Marking Information P G054N09 XYMXXXXXX B G054N09 XYMXXXXXX Package Code P :TO-220FB-3L Date Code XYMXXXXXX B : TO-263-2L Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plate TermiNation finish;which are fully compliant with RoHS.HUAYI lead-free products meet or exceed the lead-Free requirements of IPC/JEDEC J-STD-020 for MSL classification at lead-free peak reflow temperature.HUAYI d
