RFM60 Crystal-less SOC Transmitter Module

Figure 1 RFM60 Pin Description (TOP VIEW) Name VCC GPIO7 GPIO3 GPIO4 GPIO6 GPIO5 GND RF_OUT GND GPIO9 GPIO2 GPIO1 GPIO8 GPIO0 Note Power 1.8-3.6V DC, General purpose input/output pin General purpose input/output pin General purpose input/output pin, C2 clock General purpose input/output pin General.

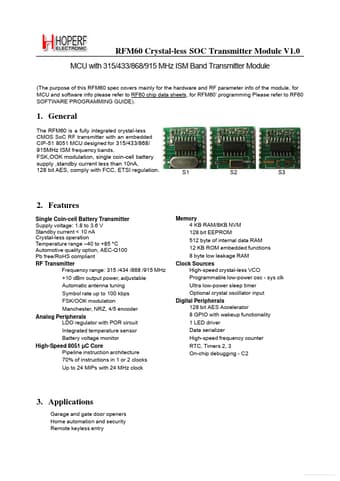

RFM60 Crystal-less SOC Transmitter Module V1.0 MCU with 315/433/868/915 MHz ISM Band Transmitter Module (The purpose of this RFM60 spec covers mainly for the hardware and RF parameter info of the module, for MCU and software info please refer to RF60 chip data sheets, for RFM60’ programming Please refer to RF60 SOFTWARE PROGRAMMING GUIDE). 1. General The RFM60 is a fully integrated crystal-less CMOS SoC RF transmitter with an embedded CIP-51 8051 MCU designed for 315/433/868/ 915MHz ISM frequen.

RFM60 Features

* Single Coin-cell Battery Transmitter Supply voltage: 1.8 to 3.6 V Standby current < 10 nA Crystal-less operation Temperature range

* 40 to +85 °C Automotive quality option, AEC-Q100 Pb free/RoHS compliant RF Transmitter 　 Frequency range: 315 /434 /868 /915 MHz 　 +10 dBm output power, adjusta

RFM60 Datasheet (307.53 KB)
