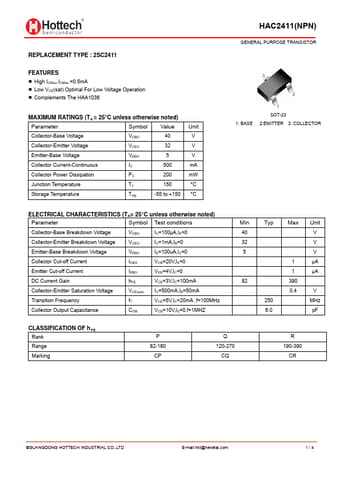

Part number:
2SC2411
Manufacturer:
HOTTECH
File Size:
652.32 KB
Description:
General purpose transistor.
* High ICMax.ICMax.=0.5mA
* Low VCE(sat).Optimal For Low Voltage Operation
* Complements The HAA1036 MAXIMUM RATINGS (TA = 25°C unless otherwise noted) Parameter Symbol Value Collector-Base Voltage VCBO 40 Collector-Emitter Voltage VCEO 32 Emitter-Base Voltage VEBO 5 Collect
2SC2411
HOTTECH
652.32 KB
General purpose transistor.
