2SC2873 - NPN Transistor

Product Overview

📥 Download Datasheet

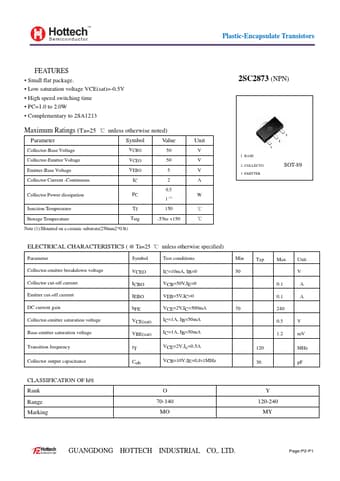

2SC2873 NPN Transistor by HOTTECH - Datasheet Preview — Datasheet preview – 2SC2873

Datasheet Details

Part number	2SC2873
Manufacturer	HOTTECH
File Size	197.89 KB
Description	NPN Transistor
Datasheet	2SC2873 Datasheet
Additional preview pages of the 2SC2873 datasheet.

Product details

Features

Small flat package.
Low saturation voltage VCE(sat)=-0.5V.
High speed switching time.
PC=1.0 to 2.0W.
Complementary to 2SA1213 Maximum Ratings (Ta=25 unless otherwise noted) Parameter Symbol Value Collector-Base Voltage VCBO 50 Collector-Emitter Voltage VCEO 50 Emitter-Base Voltage VEBO 5 Collector Current -Continuous IC 2 Collector Power dissipation 0.5 PC 1 (1) Junction Temperature TJ 150 Storage Temperature Tstg -55to +150 N.
