2SC2873-G - Transistor

Datasheet Summary

Features

  • - Small flat package - High speed switching time. - Low collector-emitter saturation voltage. Circuit Diagram 1 : BASE 2 :.

📥 Download Datasheet

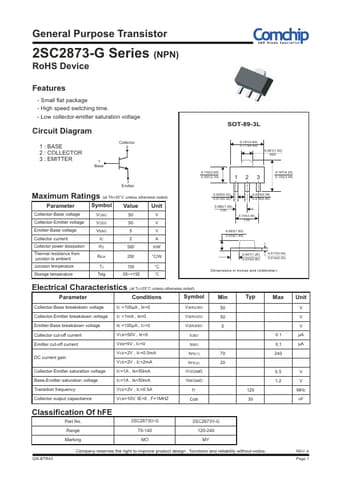

Datasheet preview – 2SC2873-G

Datasheet Details

Part number 2SC2873-G
Manufacturer Comchip
File Size 161.64 KB
Description Transistor
Datasheet download datasheet 2SC2873-G Datasheet
