Galaxy Century Microelectronics 2SC2873
Silicon NPN Transistor
| Part No. | 2SC2873 |
|---|---|
| Datasheet | 2SC2873 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | Silicon NPN Transistor |
| Buy | Stock & Price |

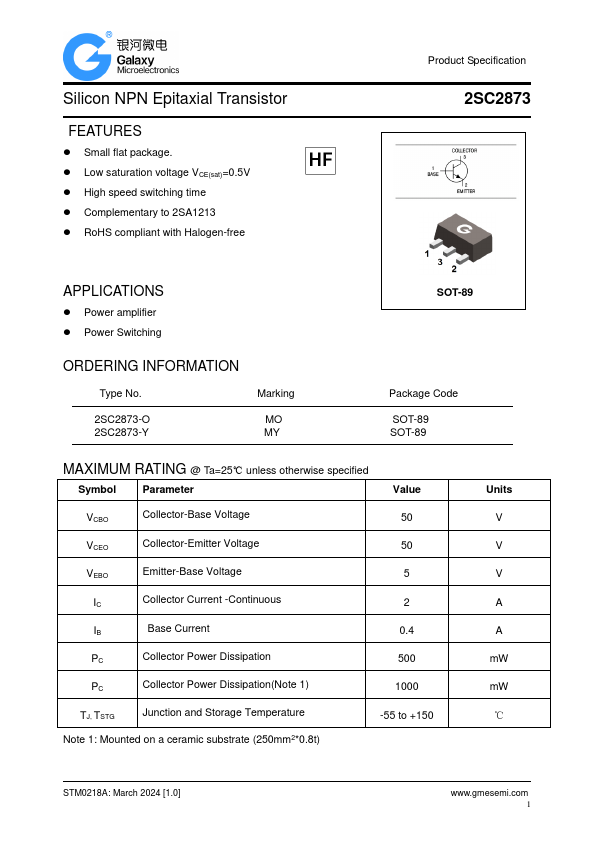

FEATURES
● Small flat package.● Low saturation voltage VCE(sat)=0.5V
● High speed switching time
● Complementary to 2SA1213
● RoHS compliant with Halogen-free Product Specification 2SC2873
APPLICATIONS
● Power amplifier● Power Switching ORDERING INFORMATION Type No. Marking 2SC2873-O MO 2SC2873-Y MY SOT-89 Package Code SOT-89 SOT-89 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage 50 VCEO Collector-Emitter Voltage 50 VEBO Emitter-Base Voltage 5 IC Collector Current -Continuous 2 IB Base Current 0.4 PC Collector Power Dissipation 500 PC Collector Power Dissipation(Note 1) 1000 TJ, TSTG Junction and Storage Temperature Note 1: Mounted on a ceramic substrate (250mm2*0.8t) -55 to +150 Units V V V A A mW mW ℃ STM0218A: March 2024 [1.0] 1 Product Specification Silicon NPN Epitaxial Transistor 2SC2873

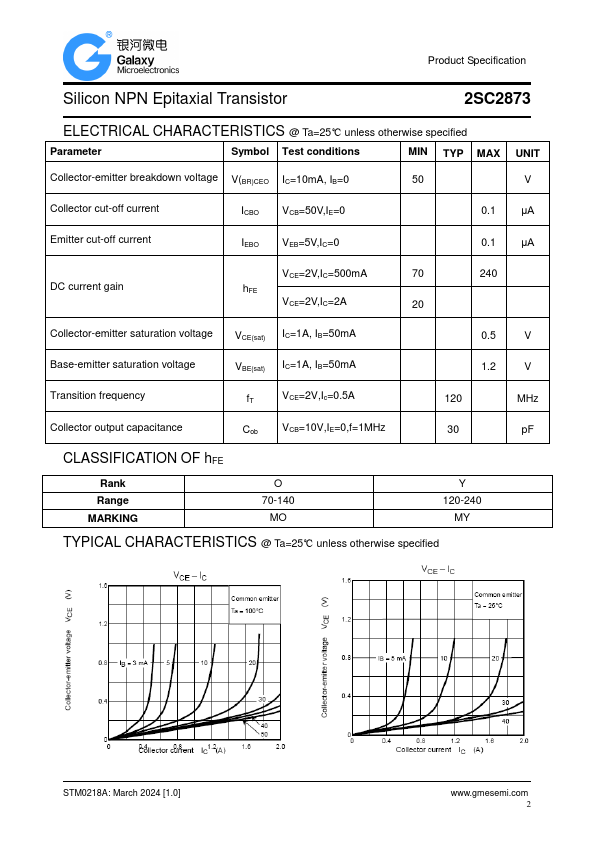

ELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified Parameter Symbol Test conditions MIN TYP MAX UNIT Collector-emitter breakdow...
