2SC4272 - NPN Transistor

Product Overview

📥 Download Datasheet

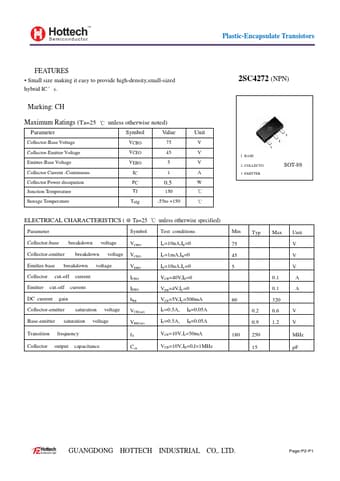

2SC4272 NPN Transistor by HOTTECH - Datasheet Preview — Datasheet preview – 2SC4272

Datasheet Details

Part number	2SC4272
Manufacturer	HOTTECH
File Size	178.07 KB
Description	NPN Transistor
Datasheet	2SC4272 Datasheet
Additional preview pages of the 2SC4272 datasheet.

Product details

Features

Small size making it easy to provide high-density,small-sized hybrid IC s. Marking: CH Maximum Ratings (Ta=25 Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Collector Power dissipation Junction Temperature Storage Temperature unless otherwise noted) Symbol Value VCBO 75 VCEO 45 VEBO 5 IC 1 PC 0.5 TJ 150 Tstg -55to +150 Unit V V V A W 2SC4272 (NPN) 1. BASE 2.
