HCNW2611 - High Speed TTL Compatible Optocouplers

Product Overview

Part number	HCNW2611
Manufacturer	HP
File Size	244.54 KB
Description	High Speed TTL Compatible Optocouplers
Datasheet	HCNW2611 Datasheet
Note	This datasheet PDF includes multiple part numbers: HCNW2611, HCNW137. Please refer to the document for exact specifications by model.

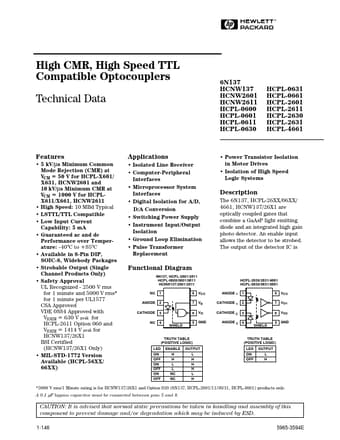

Additional preview pages of the HCNW2611 datasheet.

5 kV/µs Minimum Common Mode Rejection (CMR) at VCM = 50 V for HCPL-X601/ X631, HCNW2601 and 10 kV/µs Minimum CMR at VCM = 1000 V for HCPLX611/X661, HCNW2611.
High Speed: 10 MBd Typical.
LSTTL/TTL Compatible.
Low Input Current Capability: 5 mA.
Guaranteed ac and dc Performance over Temperature: -40°C to +85°C.
Available in 8-Pin DIP, SOIC-8, Widebody Packages.
Strobable Output (Single Channel Products Only).
Safety Approval.
