HCNW3120 - Agilent 2.5 Amp Output Current IGBT Gate Drive Optocoupler

HCNW3120 Description

www.DataSheet4U.com Agilent 2.5 Amp Output Current IGBT Gate Drive Optocoupler Data Sheet HCPL-3120 HCPL-J312 HCNW3120 Functional Diagram N/C 1 AN.

HCNW3120 Features

* 2.5 A maximum peak output current
* 2.0 A minimum peak output current
* 15 kV/µs minimum Common Mode Rejection (CMR) at VCM = 1500 V
* 0.5 V maximum low level output voltage (VOL) Eliminates need for negative gate drive
* ICC = 5 mA maximum supply current

📥 Download Datasheet

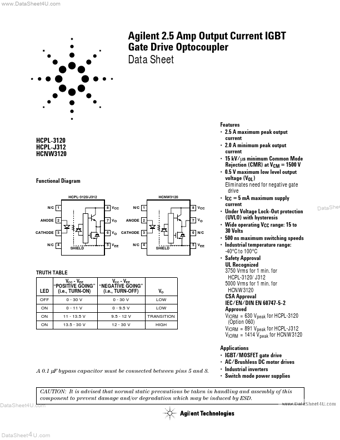

Preview of HCNW3120 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HCNW3120
Manufacturer
Agilent
File Size
197.33 KB
Datasheet
HCNW3120-Agilent.pdf
Description
Agilent 2.5 Amp Output Current IGBT Gate Drive Optocoupler
