MGA-86576 1.5 - 8 GHz Low Noise GaAs MMIC Amplifier

MGA-86576 Description

1.5 * 8 GHz Low Noise GaAs MMIC Amplifier Technical Data MGA-86576 .
Hewlett-Packard’s MGA-86576 is an economical, easy-to-use GaAs MMIC amplifier that offers low noise and excellent gain for applications from 1.

MGA-86576 Features

* 1.6 dB Noise Figure at 4 GHz
* 23 dB Gain at 4 GHz
* +6 dBm P1dB at 4 GHz

MGA-86576 Applications

* LNA or Gain Stage for 2.4 GHz and 5.7 GHz ISM Bands
* Front End Amplifier for GPS Receivers
* LNA or Gain Stage for PCN and MMDS Applications
* C-Band Satellite Receivers
* Broadband Amplifier for Instrumentation Schematic Diagram RF INPUT 1 Surface Mount C

📥 Download Datasheet

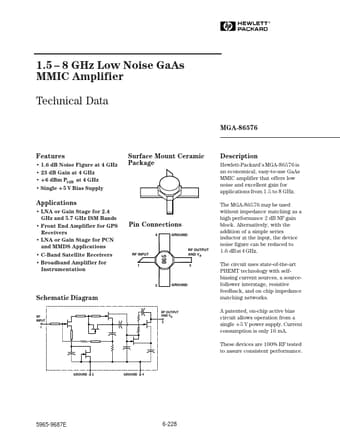

Preview of MGA-86576 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MGA-86576
Manufacturer
HP
File Size
63.45 KB
Datasheet
MGA-86576-HP.pdf
Description
1.5 - 8 GHz Low Noise GaAs MMIC Amplifier
