HS70N06PA - N-CHANNEL MOSFET

Datasheet Summary

Description

The HS70N06 is three-terminal silicon device with current conduction capability of about 70A, fast switching speed.

Low on-state resistance, breakdown voltage rating of 60V, and max threshold voltages of 4 volt.

2.

Features

  • RDS(ON)=15mΩ@VGS=10V.
  • Ultra low gate charge (typical 90nC).
  • Low reverse transfer capacitance.
  • Fast switching capability.
  • 100％ avalanche energy specified.
  • Improved dv/dt capability 3. Pin configuration TO-220 Pin 1 2 3 1 of 6 Function Gate Drain Source 0 Amps, 60 Volts N-.

📥 Download Datasheet

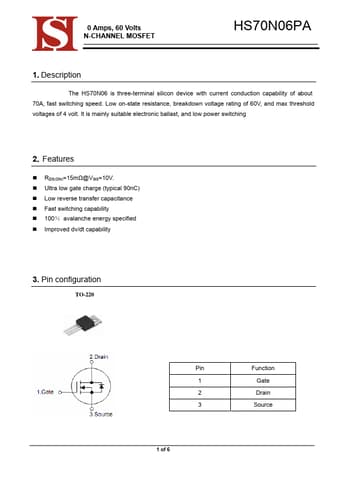

Datasheet preview – HS70N06PA
