LM1937

White LED Step-Up Converter

HTC

LM1937 Features

* Inherently Matched LED Current

* High Efficiency : 84% Typical

* Drives Up to 4 LEDs from a 3.2V Supply

* Drives Up to 6 LEDs from a 5V Supply

* Power Management IC

* 36V Rugged Bipolar Switch

* Fast 1.2MHz Switching Frequency

* Uses Tiny 1mm Tall Inductors

* Re

LM1937 General Description

The LM1937 is a step-up DC/DC converter specifically designed to drive white LEDs with a constant current. The device can drive two, three or four LEDs in series from a Li-Ion cell. Series connection of the LEDs provides identical LED currents resulting in uniform brightness and eliminating the need.

LM1937 Datasheet (254.80 KB)

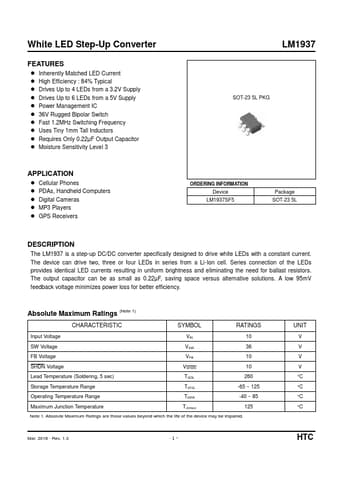

LM1937 Datasheet Preview — Preview of LM1937 PDF

Datasheet Details

Part number:

LM1937

Manufacturer:

HTC

File Size:

254.80 KB

Description:

White led step-up converter.
