LM1086 - 1.5A L.D.O. VOLTAGE REGULATOR

Product Overview

HTC

LM1086 1.5A L.D.O. VOLTAGE REGULATOR by HTC - Datasheet Preview — Datasheet preview – LM1086

Datasheet Details

Part number	LM1086
Manufacturer	HTC
File Size	192.68 KB
Description	1.5A L.D.O. VOLTAGE REGULATOR
Datasheet	LM1086 Datasheet
Additional preview pages of the LM1086 datasheet.

Product details

Description

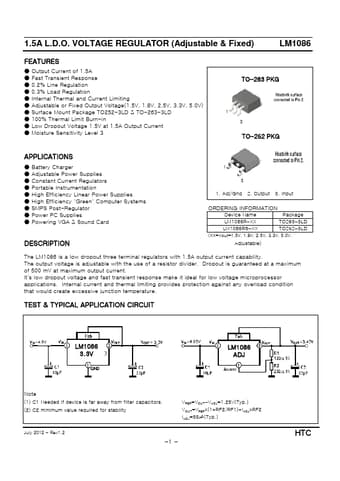

1 3 1. Adj/Gnd 2. Output 3. Input ORDERING INFORMATION Device Name Package LM1086R-XX TO263-3LD LM1086RS-XX TO252-3LD (XX=Vout=1.5V, 1.8V, 2.5V, 3.3V, 5.0V, Adjustable) The LM1086 is a low dropout three terminal regulators with 1.5A output current capability.The output voltage is adjustable with the use of a resistor divider.Dropout is guaranteed at a maximum of 500 mV at maximum output current.It's low dropout voltage and fast transient response make it ideal for low voltage mic

Features

Output Current of 1.5A.
Fast Transient Response.
0.2% Line Regulation.
0.3% Load Regulation.
Internal Thermal and Current Limiting.
Adjustable or Fixed Output Voltage(1.5V, 1.8V, 2.5V, 3.3V, 5.0V).
Surface Mount Package TO252-3LD & TO-263-3LD.
100% Thermal Limit Burn-in.
Low Dropout Voltage 1.5V at 1.5A Output Current.
Moisture Sensitivity Level 3 TO-263 PKG 1 3 TO-252 PKG.
