LM1085, LM1 Datasheet - National Semiconductor

LM1085 3A Low Dropout Positive Regulators

The LM1085 is a series of low dropout positive voltage regulators with a maximum dropout of 1.5V at 3A of load current. It has the same pin-out as National Semiconductor’s industry standard LM317. The LM1085 is available in an adjustable version, which can set the output voltage with only two extern.

LM1085 Features

* n Available in 3.3V, 5.0V, 12V and Adjustable Versions n Current Limiting and Thermal Protection n Output Current 3A n Line Regulation 0.015% (typical) n Load Regulation 0.1% (typical) Applications n High Efficiency Linear Regulators n Battery Charger n Post Regulation for Switching Supplie

LM1-085.pdf

This datasheet PDF includes multiple part numbers: LM1085, LM1. Please refer to the document for exact specifications by model.

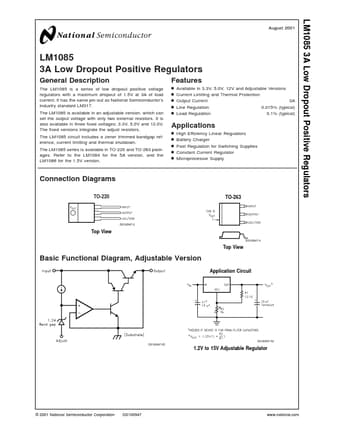

LM1085 Datasheet Preview Page 2 LM1085 Datasheet Preview Page 3

Datasheet Details

Part number:

LM1085, LM1

Manufacturer:

National Semiconductor

File Size:

287.16 KB

Description:

3a low dropout positive regulators.

Note:

This datasheet PDF includes multiple part numbers: LM1085, LM1.
Please refer to the document for exact specifications by model.
